Navigation settings

In addition to the web application framework, the Business Process Center provides other core functions for designing, controlling and monitoring your applications. One of the central functions is the management of application areas, page structures and other navigation settings, such as the assignment of visibility rights.

Functional description

The structure of the application can be configured via navigation settings. Application areas and the associated modules and links to external pages can be created, which are displayed in the navigation bar after the settings have been made.

Overview

Navigating to the navigation settings

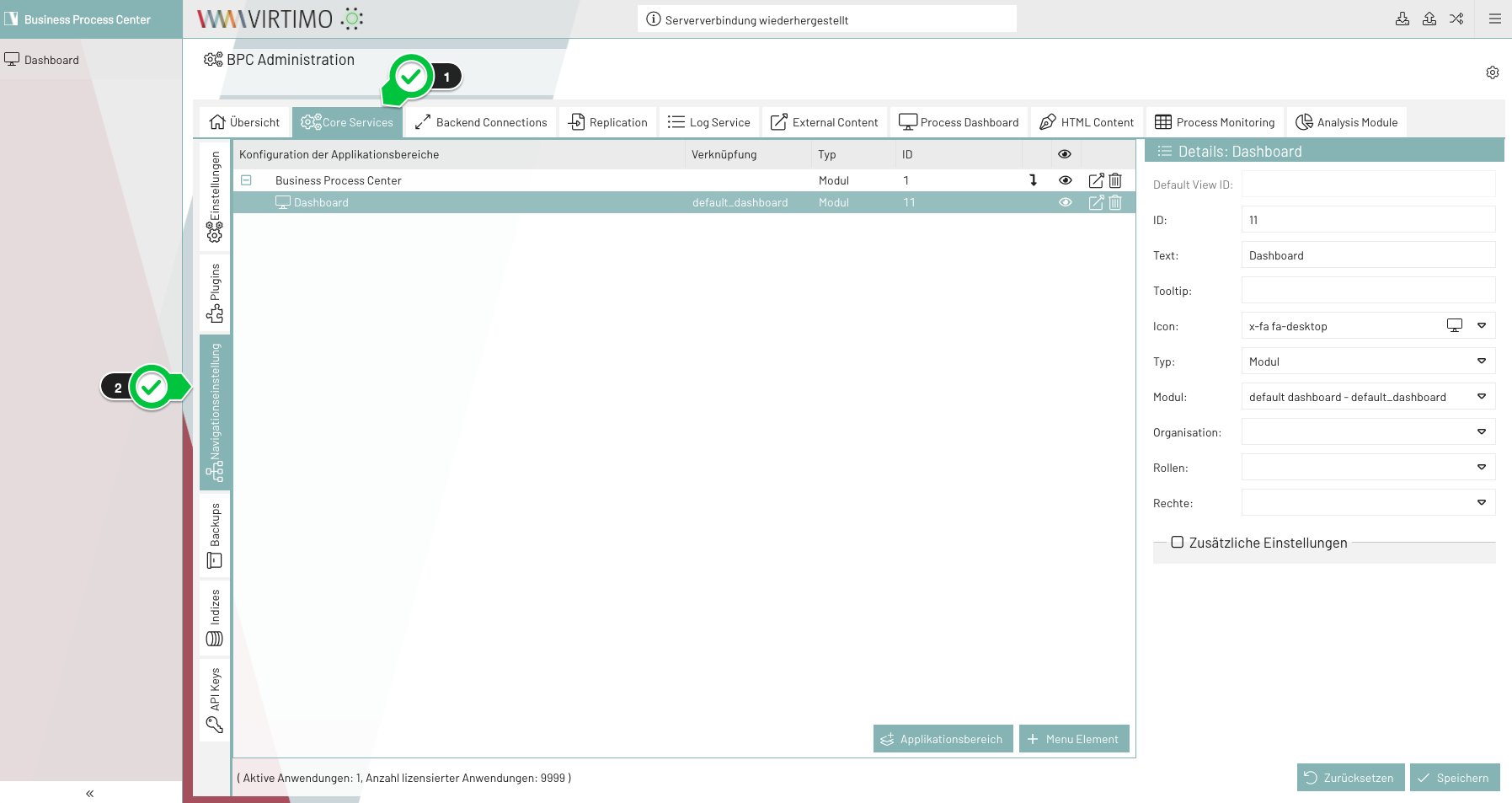

To navigate to the navigation settings, first select the "Core Services" tab in the settings panel and then "Navigation settings":

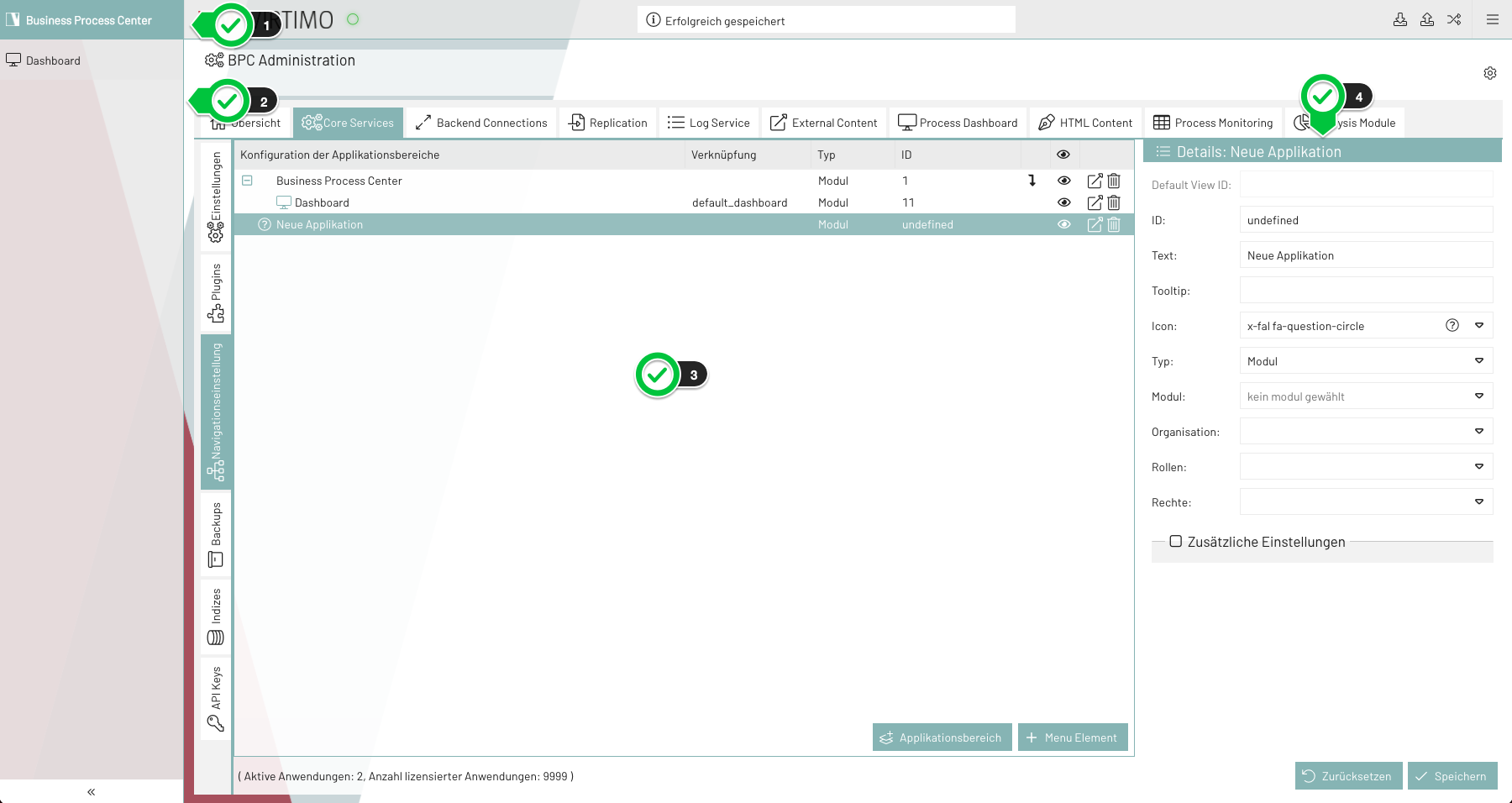

The most important components of the navigation settings:

Application area selection: the list of application areas is displayed here when you move the mouse over or click on it (only if the application contains at least two areas)
Navigation bar: the configured navigation elements in the current area are displayed here.
Navigation settings panel: Overview of the navigation settings for application areas and navigation elements.
Content panel: Overview of the settings for a navigation element.

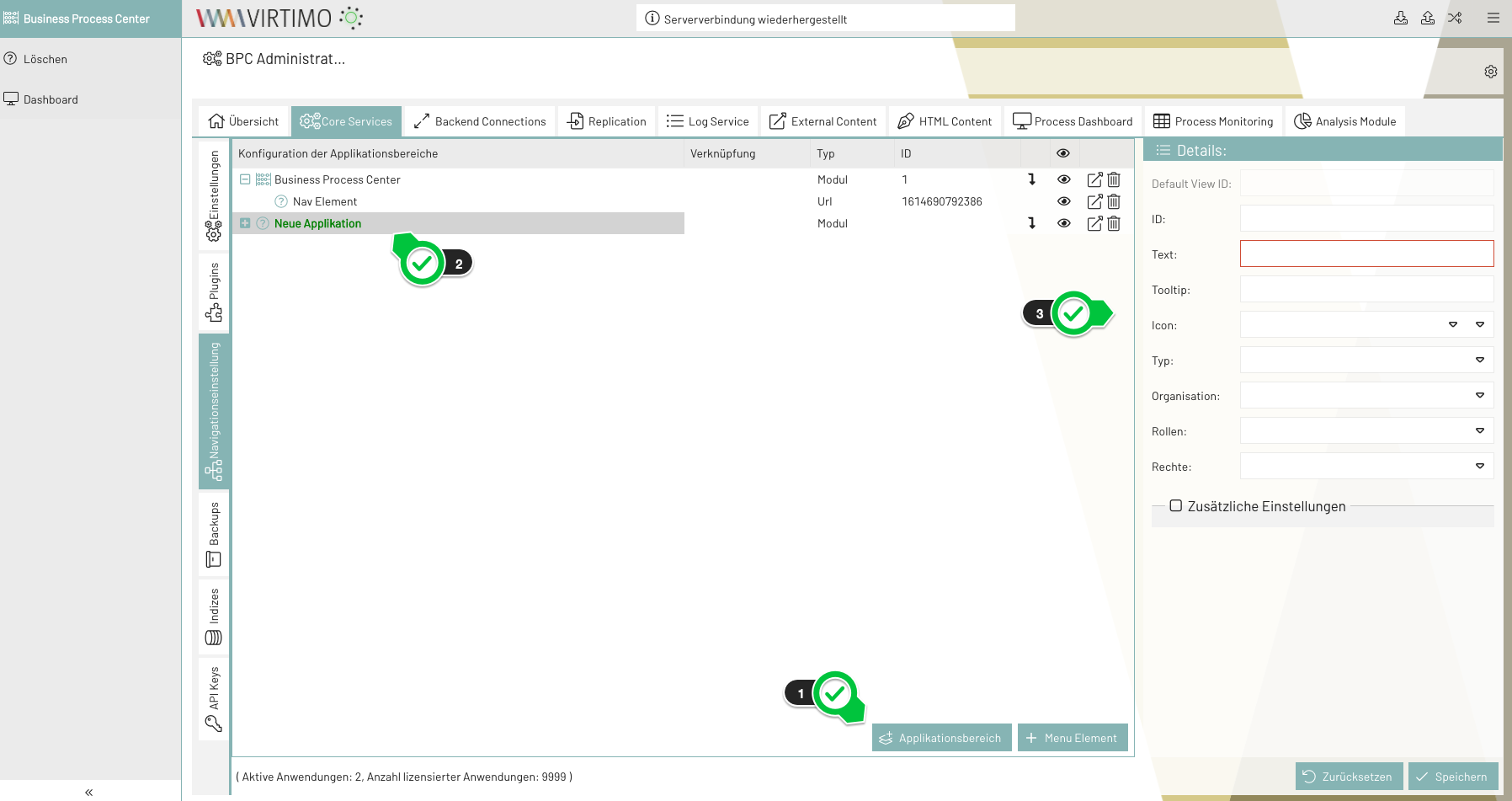

Creating an application area

Click on "Application area"
The new application area is created and the corresponding navigation element is shown in the overview.
Configuration of the navigation element

Creating a navigation element

Click on "Menu element"
The new navigation element is shown in the overview
Configuration of the navigation element

A navigation element can be moved to different levels using drag & drop

Configuration options

Parameters	Type	Description
ID	Text	ID of a navigation element. This ID is usually assigned by the application. However, the ID can also be adjusted manually. Duplicates of IDs are not permitted.
Text	Text, Language Key	Labeling of a navigation element that is shown in the navigation bar. Multilingual possible. A "Language Key" can be used for this, which is contained in the Language Key list.
Tooltip	Text, Language Key	Quick info about a navigation element. It is displayed when the mouse is moved over a navigation element in the navigation bar. Multilingual possible. A "Language Key" can be used for this, which is contained in the Language Key list.
Icon	Icon Picker	Icon of a navigation element. This icon is visible in the navigation bar with the name of the navigation element
Type	Selection list	Type of a navigation element. There are three options: Module, URL or_Spacer_. Module: the navigation element is linked to a module URL: the navigation element is linked to a URL Spacer: see Spacer
Module	Module selection list	Module to which the navigation element is linked. Only visible if "Module" is selected as the type
URL	Text	URL to which the navigation element is linked. Only visible if "URL" is selected as the type. URL is checked.
Target	_blank, _self. More information	Indicates where the new page is opened. Only visible if "URL" is selected as the type
Organization/ Roles/ Rights	Selection list	Specifies which user is allowed to see the navigation element
ViewMode	Selection list: Tabbed, Vertical, Menu. See View Mode	Display mode of the subordinate elements of a navigation element. Only visible if the element contains child elements.

Parameters

Type

Description

Text

ID of a navigation element. This ID is usually assigned by the application. However, the ID can also be adjusted manually.

Duplicates of IDs are not permitted.

Text

Text, Language Key

Labeling of a navigation element that is shown in the navigation bar.

Multilingual possible. A "Language Key" can be used for this, which is contained in the Language Key list.

Tooltip

Text, Language Key

Quick info about a navigation element. It is displayed when the mouse is moved over a navigation element in the navigation bar.

Multilingual possible. A "Language Key" can be used for this, which is contained in the Language Key list.

Icon

Icon Picker

Icon of a navigation element. This icon is visible in the navigation bar with the name of the navigation element

Type

Selection list

Type of a navigation element.
There are three options: Module, URL or_Spacer_.

Module: the navigation element is linked to a module
URL: the navigation element is linked to a URL
Spacer: see Spacer

Module

Module selection list

Module to which the navigation element is linked.
Only visible if "Module" is selected as the type

URL

Text

URL to which the navigation element is linked.
Only visible if "URL" is selected as the type. URL is checked.

Target

_blank, _self. More information

Indicates where the new page is opened.
Only visible if "URL" is selected as the type

Organization/ Roles/ Rights

Selection list

Specifies which user is allowed to see the navigation element

ViewMode

Selection list: Tabbed, Vertical, Menu.
See View Mode

Display mode of the subordinate elements of a navigation element.
Only visible if the element contains child elements.

Spacer

There is a maximum of one spacer per level. Depending on the viewMode of the level, the following should happen:

tabbed
All elements after the spacer are created as right-aligned tabs (please check whether this is possible at all; if not, then not)
menu
An Ext.menu.separator is inserted
vertical
All elements after the spacer are arranged at the bottom (technically, only one invisible element with "flex: 1" is included)

View Mode

tabbed: The subordinate elements are displayed in tabs
vertical: The subordinate elements are displayed vertically in the navigation bar
menu: The subordinate elements are displayed in the menu

Drag & drop

In the navigation settings, elements can be moved using drag & drop to adjust the structure interactively, even after the navigation was originally created. Depending on the type of element, different rules apply as to where it may be placed.

General behavior

Each navigation element has a specific type (e.g. application area, module, URL, spacer, folder), which determines where this element may be placed within the navigation structure. When moving, the user interface visually indicates whether a drop is permitted.

Application areas

Application areas may only be placed at root level only be at root level (top level of the navigation).
They can be moved or reordered within the root level moved or rearranged within the level - e.g. before or after other application areas.
Storing application areas in lower levels (e.g. within a folder or module) is not permitted not permitted.

Modules, URLs, spacers and folders

These types must not be placed on the root level level.
They must be placed below a higher-level element (e.g. application area or folder).
Direct placement at root level is prevented by the interface.

Note

The interface automatically prevents invalid moves. As soon as a drag & drop process is not permitted, the drop indicator is deactivated accordingly.

JSON configuration in Core Services

There is an extra configuration for the view and navigation structure with the key viewConfiguration. The configuration of the individual menu items is injected directly into the ExtJS object. Therefore, all attributes specified under "configs" in the API documentation are possible.

It is not recommended to change the JSON directly. The configuration should be carried out via the interface described above.

The navigation structure is generated from this configuration and which modules are linked to the navigation elements. The configuration is structured as follows:

Setting Data type Description

defaultView

Number

View that is to be displayed initially. References a viewID.

views

Array

A list of view objects.

viewItemId

Number

ID of the view element. Is not taken into account if it is located below views.

viewItemId must be globally unique.

text

Text

Text of the menu item

tooltip

Text

Tooltip content

targetModule

Text

Name of the module instance that is displayed after clicking on the navigation element.

iconCls

Text

CSS classes for the icon

...

...

Any other attributes can be added. These are passed directly to the ExtJS object. Therefore, all menu item attributes(see ExtJS API) can be used.

items

Array

List of sub-elements.
The sub-elements are also structured as described in this table.

right

Text / Array

Designation of a user right.
If the element is specified, the system checks whether the user has this right. If this is not the case, the element is ignored and is considered non-existent.

role

Text / Array

Designation of a user role.
If the element is specified, the system checks whether the user has this role. If this is not the case, the element is ignored and is deemed not to exist.

Example:
"role":["role1", "role2"]

organization

Text

Name of an organization.
If the element is specified, the system checks whether the user belongs to this organization. If this is not the case, the element is ignored and is considered non-existent.
