Data Analysis
|
The Analysis module requires a separate license and is not included in the standard equipment of the BPC. |
The Analysis module is designed to obtain data from various sources and visualize them in the desired form. After selecting and configuring the data source, the data can be modified as desired.
The processed data are then added to the Charting Library amCharts4 The individual visualizations (charts) can now be created. Various chart types as well as tables or an HTML template are available for this purpose. The appearance of the charts can be adapted using predefined user interfaces or your own JSON Parameters.
Individual charts can be displayed directly as a widget Widget and used in a BPC dashboard. Any number of charts can also be combined in reports with customizable layouts.
Reports can be visualized in a dashboard in the same way as the charts.
If a specific structure and categorization is required, reports can be loaded into a tree structure (catalog).

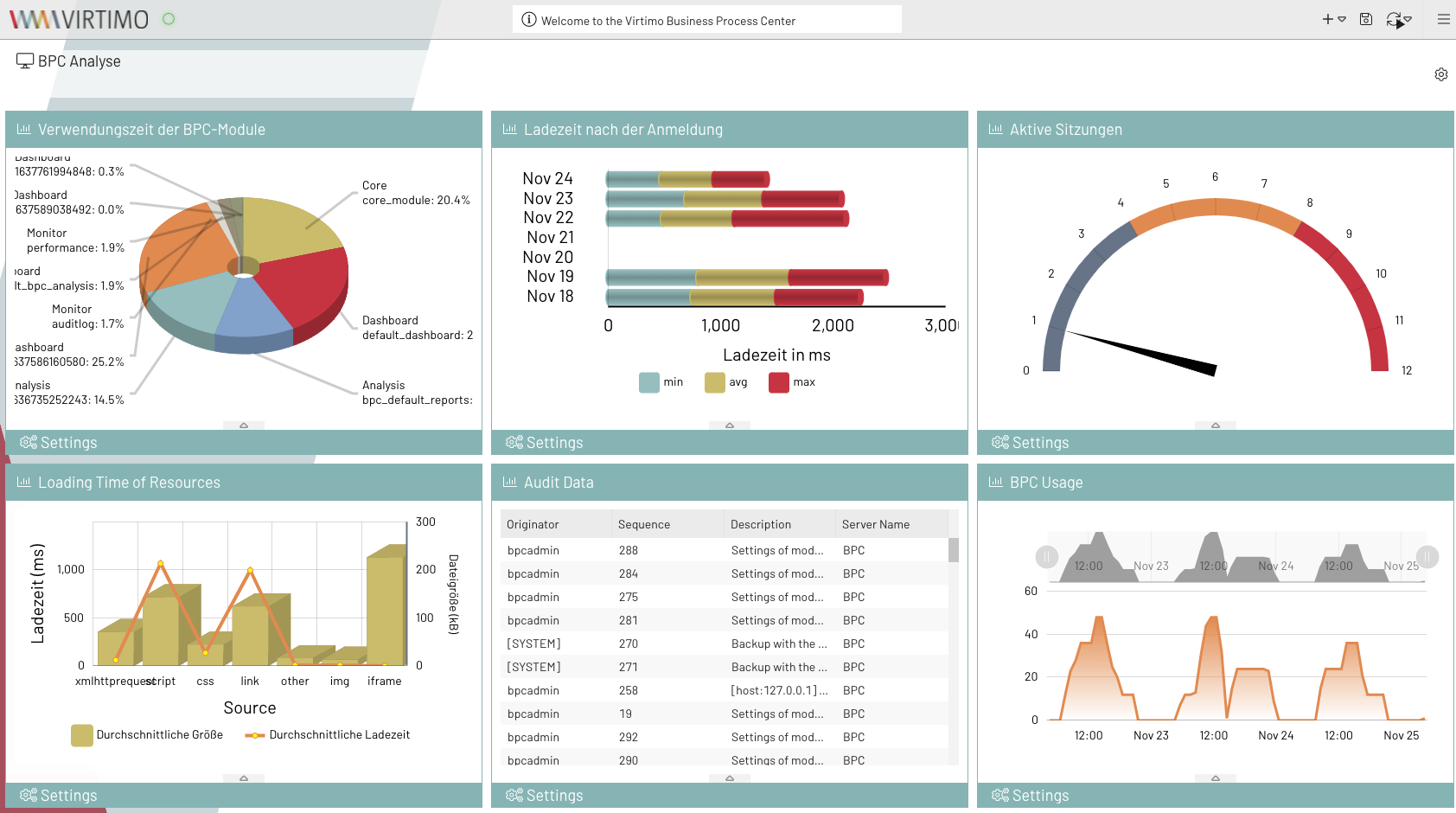

Ready-made data sets and charts containing the performance data of the BPC application are already available for the BPC.
They can be used as illustrative examples of how the Analysis module works.
Features
-
Prepare data from various sources and visualize it in reports
-
Further processing of the data obtained through individual scripting (Groovy or JavaScript)
-
Pie, bar, line and speedometer charts as well as tables and HTML templates for visualizing the data
User groups
-
Producers
This user group is concerned with the creation of data sets, charts and reports.
Producers require an understanding of data structures (especially in JSON format) in order to configure the charts based on the data sets provided. -
Consumers
This user group consumes the reports provided and can therefore only view them in the Catalog catalog.
If the administrator has granted the necessary rights, changes can also be made to the tree structure of the catalog.
