Module front-end interface

A BPC module should contain an interface class. This provides the BPC core with information about the module. This allows it to be integrated at various points in the BPC.

Requirements

The interface class must extend the BpcCommon.BpcInterface class. The config block can then contain interface information.

Interface information

The class can provide the BPC with various information on how the module is to be used and which components can also be used outside the module.

`moduleConfigurationComponents`

xtypes of ExtJS components (derived from Ext.Component) can be specified here. These components are provided as additional tabs in the configuration area of the module (see Administration area). The components should have the attributes title and iconCls so that they can be displayed correctly in the table bar.

These components usually provide information or configuration options for BPC administrators.

`moduleInstanceConfigurationComponents`

ExtJS components can be specified here in the same way as moduleConfigurationComponents. The difference to moduleConfigurationComponents is that these components relate to individual module instances and are therefore also displayed in the interface in the dialog in which the instances are selected and configured. If such a component is configured on a module, it is also displayed in front of the standard "Settings" interface.

The following functions are available to the component here:

Access to the current instance (Ext.data.Model of the instance configuration)
Extension of the action buttons in the list of instances
Addition of further columns to the instance list
Extension or replacement of buttons below the instance list

The component can access "{moduleInstance}" via its own ViewModel. This always contains the data model of the currently selected instance.

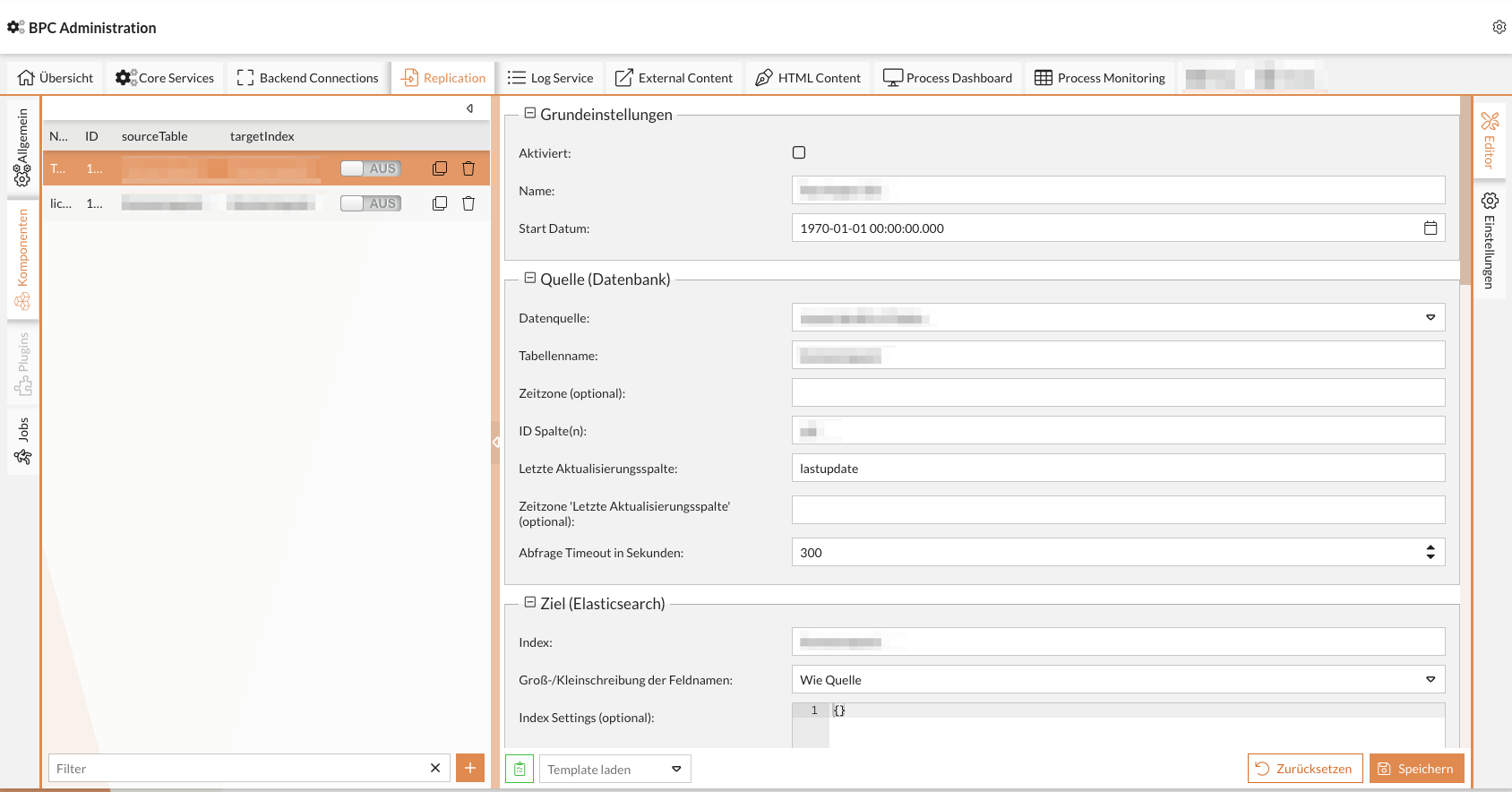

Admin area with a moduleInstanceConfigurationComponent

Illustration 1. Administration area with a moduleInstanceConfigurationComponent

`moduleInstanceInterface`

To expand the view, the components can provide further information via the moduleInstanceInterface attribute.

additionalColumns

Columns (Ext.grid.column.Column) configurations can be stored here. These are added to the instance list.

additionalActions

ExtJS components such as buttons can be configured here. These are added below the instance list.

If you add a component with the itemId "addBtn", this replaces the existing button for adding new instances.

additionalInstanceActions

ExtJS components such as buttons can be configured here. These are added in the line of the individual instances.

If you add a component with the itemId "addToNavBtn", "duplicateBtn", "deleteBtn" or "jumpTpoInstanceBtn", then this replaces the existing button.

Ext.define("MODULID.view.MyInstancePanel", {
   extend : "Ext.Panel",

   moduleInstanceInterface : {
      additionalColumns : [],
      additionalActions : [],
      additionalInstanceActions : []
   }

    // ...
});

`defaultModuleInstanceConfigurationComponent`

Hier kann die Standardkomponente zum Editieren einer Instanz definiert werden. Diese muss in moduleInstanceConfigurationComponents enthalten sein. Wird hier keine Komponente angegeben, so wird die Standard Komponente zum Editieren von Modulinstanzen angezeigt.

`widgets`

Hier können BPC Widgets für das Dashboard hinterlegt werden. Für die Implementierung von Widgets (siehe Develop BPC widgets)

Hier können keine xtypes verwendet werden.

Beispiel Widget

Ext.define("MODULID.view.widget.MyWidget", {
   extend : "Ext.Panel",

   mixins : [
      "BpcCommon.mixin.Widget"
   ],

   statics : {
      WIDGET_NAME        : "Widget Name",
      WIDGET_DESCRIPTION : "Widget Beschreibung",
      WIDGET_ICON_CLS    : "x-fal fa-fire"
   }
});

`baseModuleView`

Class name for displaying the module. Default: MODULEID.view.Main Can be accessed via

BpcCommon.Api.showModule("MODULEID")

This representation is rarely used.

`mainView`

Class name for the representation of an instance of the module. Default: MODULEID.view.Main Can be accessed via

BpcCommon.Api.showModule("MODULE-INSTANCE-ID")

`forwardedEvents`

Can contain a list of global ExtJS event names. If an event is thrown from the list in the client, it is also forwarded to the backend via websocket and can be received there via the EventService.

Example

Beispiel Klasse

 Ext.define("MODULEID.BpcInterface", {
    extend: "BpcCommon.BpcInterface",

   config : {

      /**
         * An array of component-xtypes which will be added to the configuration GUI for this module. They
         * will get the Ext.data.Model of the corresponding module as parameter and can be used via this.module.
         */
      moduleConfigurationComponents : [],

      /**
       * An array of component-xtypes which will be added to the instance configuration GUI for this module. They
       * will get the Ext.data.Model of the corresponding module instance as parameter and can be used via this.moduleInstance.
       */
      moduleInstanceConfigurationComponents : [],

      /**
       * The default component to configure the instance. This must be one element from moduleInstanceConfigurationComponents. If no
       * default is defined the default configuration panel is initially shown.
       */
      defaultModuleInstanceConfigurationComponent : undefined,

      /**
         * A list of widgets (they should use the mixin BpcCommon.mixin.Widget), which will be offered to other modules.
         */
      widgets : [],

      /**
         * A string which points to the baseModuleView, ExtJS class, string
         */
      baseModuleView : null,


      /**
         * A string which points to the mainView, ExtJS class, string
         */
      mainView : null,

      /**
         * Array of global event names, which should be forwarded to the backend.
         */
      forwardedEvents : []
   }
});
