Installation

Requirements

BPC server installed, configured and started
INUBIT Process Engine started
BPC configured as portal server in INUBIT. If BPC is not installed on the same computer as the INUBIT Process Engine, localhost:8181 should be replaced by the name and Port of the computer on which the BPC is installed.
Documentation modules have been deployed from INUBIT to BPChttps://docs.virtimo.net/de/inubit/8.0/administration-guide/general-settings/configuring-portal-deployment.html[(documentation])
BPC configured as a process user server in INUBIThttps://docs.virtimo.net/de/inubit/8.0/administration-guide/general-settings/configuring-process-user-server.html[(documentation])
All diagrams to be displayed in Process Documentation have been linked to at least one BPC process role in INUBIT

Loading the Process Documentation module in BPC

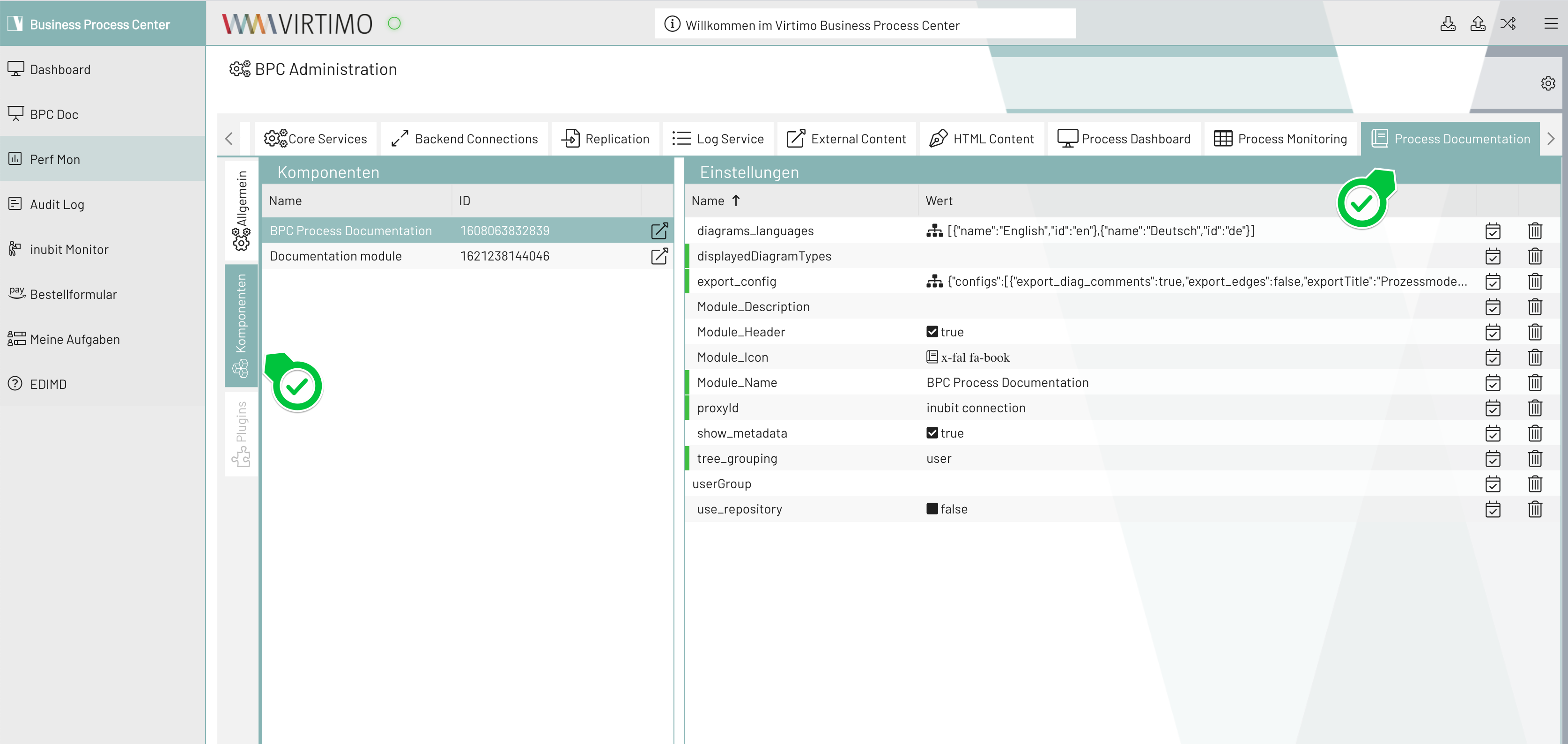

configuration overview

Logging into BPC via the URL http(s)://<portal hostname>:<port> such as http(s)://localhost:8181/
After logging in, navigate to the administration area and select the Process Documentation tab. The deployed documentation modules are located under Components.
The displayed diagram types can be restricted via "displayedDiagramTypes". If the field is empty, all diagram types are permitted. Possible values are (multiple values specified as a comma-separated list):
- processmap (process maps)
- bpd (business process diagrams)
- constraintsdiagram (business object diagrams)
- organigram (organizational charts)
- soamap (SOA maps)
- systemdiagram (system diagrams)
- technical (technical workflows)
The "userGroup" property can be used to filter the display of this Documentation module to the diagrams of a user or a user group (e.g. BusinessProcessCenter). Leave the field empty to make no restrictions.
On the INUBIT Process Engine, at least one diagram of a type configured in "displayedDiagramTypes" must exist globally or in the filtered user/group, which is assigned to at least one process user rolehttps://files.virtimo.net/Userportal/Inubit/7.4/Docs/online-help/de/index.htm#Workbench_Specifying_Visibility_of_Diagrams_in_the_Process_Viewer.html[(documentation]). The logged-in BPC user must have at least one of these assigned roles so that the tree view is not displayed empty, but filled with diagrams.
Click on the icon in the Actions column in the component list to display the component as a test. For everyday use, add it as a navigation menu element, see Navigation settings.
