Diagram export as PDF
|
Requirements
|
Configuration in INUBIT

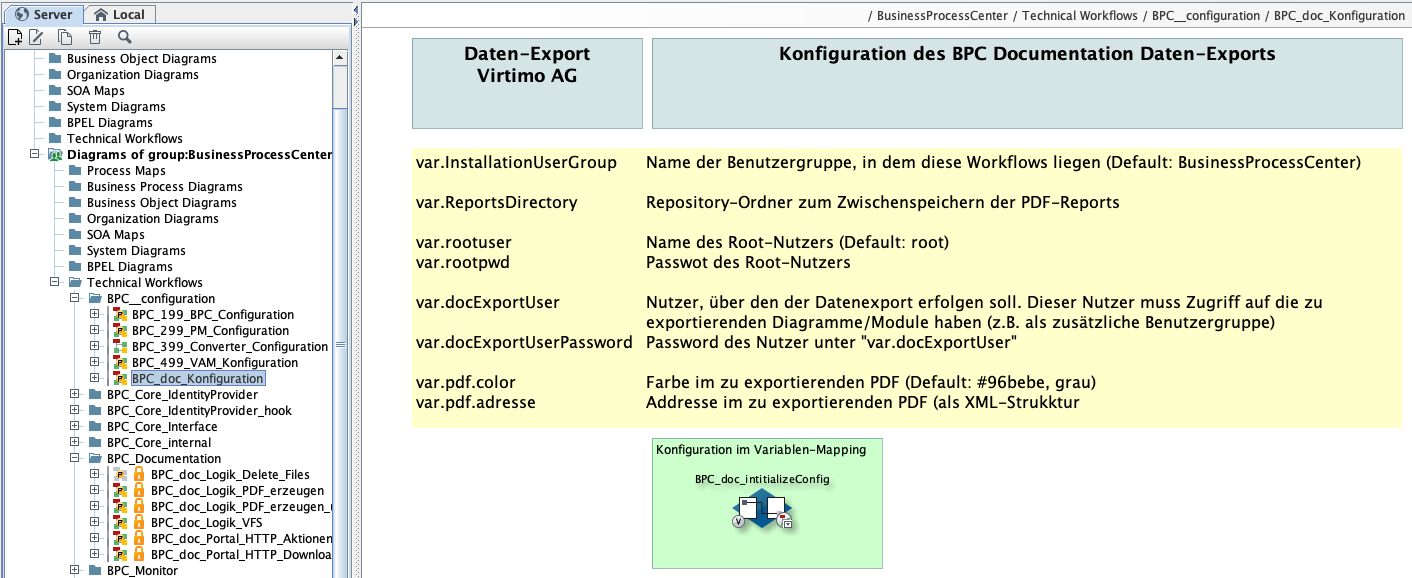

The configuration is carried out on the Technical Workflow BPC_doc_Konfiguration. The individual configuration parameters are set via the variable mapping. The following must be set for the PDF export:
-
var.docExportUser -
var.docExportUserPassword
The diagram data for creating the PDF is read out via this user. It is therefore essential that this user has access to all displayed diagrams. This is usually done by storing the diagrams in this user’s group or in their additional user groups.
Also adjust the Parameters var.rootuser and var.rootpwd if you change the root user’s access data.
Configuration in the BPC
No administrative configuration is required in the BPC for the PDF export.
The user can now use the Export functionality in the BPC Process Documentation module.
