Architecture

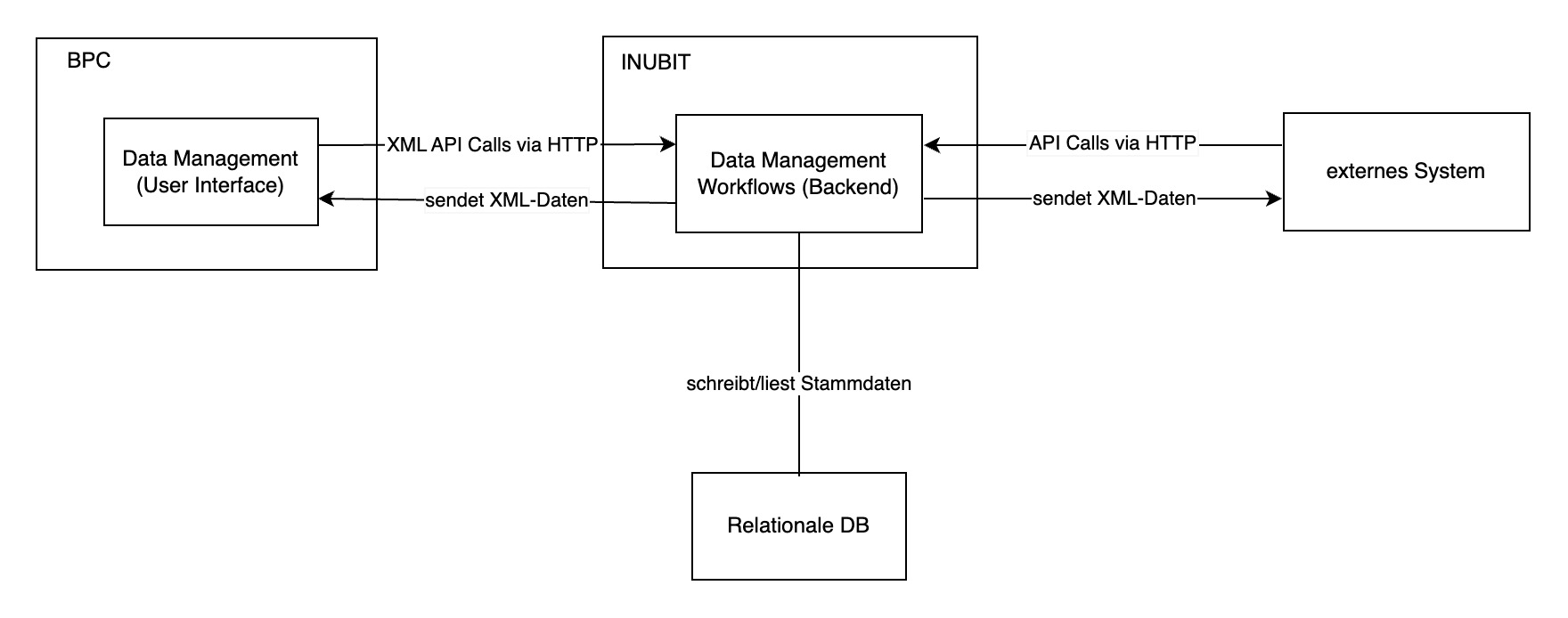

The three components BPC, INUBIT and a relational database interact in data management.

architecture

Data is requested from INUBIT in the BPC’s data management module. INUBIT contains special workflows for data management that read master data from the relational database. This data is sent from INUBIT to the BPC.

Change requests from the BPC are also processed via the INUBIT workflows and written to the database.
