Versioning of the Internal BPC Configuration

The BPC stores its configuration internally in the OpenSearch under the index bpc-configuration. The current state of this configuration is assigned a fixed version number internally. This is stored internally as model_version in the index and is a natural number that is incremented in the event of an update.

If, during a BPC update, the internal configuration changes and the version number is incremented as a result, the BPC automatically migrates the existing configuration to the new version and stores the new version number in the index.

Affected Versions

The internal configuration was updated in the following BPC versions.

Potential Impact on Operations

The version of the internal configuration affects certain aspects of operations.

Deployment

It is not possible to perform a Deployment from a BPC with a higher model_version to a BPC with a lower model_version.

However, it is possible to perform a deployment from a BPC with a lower model_version to a BPC with a higher model_version. If necessary, configuration adjustments are made automatically during this process.

Downgrade

Additional steps are required to perform a BPC downgrade if the target version of the BPC uses a lower model_version.

See: Downgrade Guide

Retrieving the Current Version Number

The version number is stored in the metadata of the bpc-configuration index.

It can be viewed directly in BPC at OpenSearch Index View. It is included in the index’s mapping information and is labeled there as model_version.

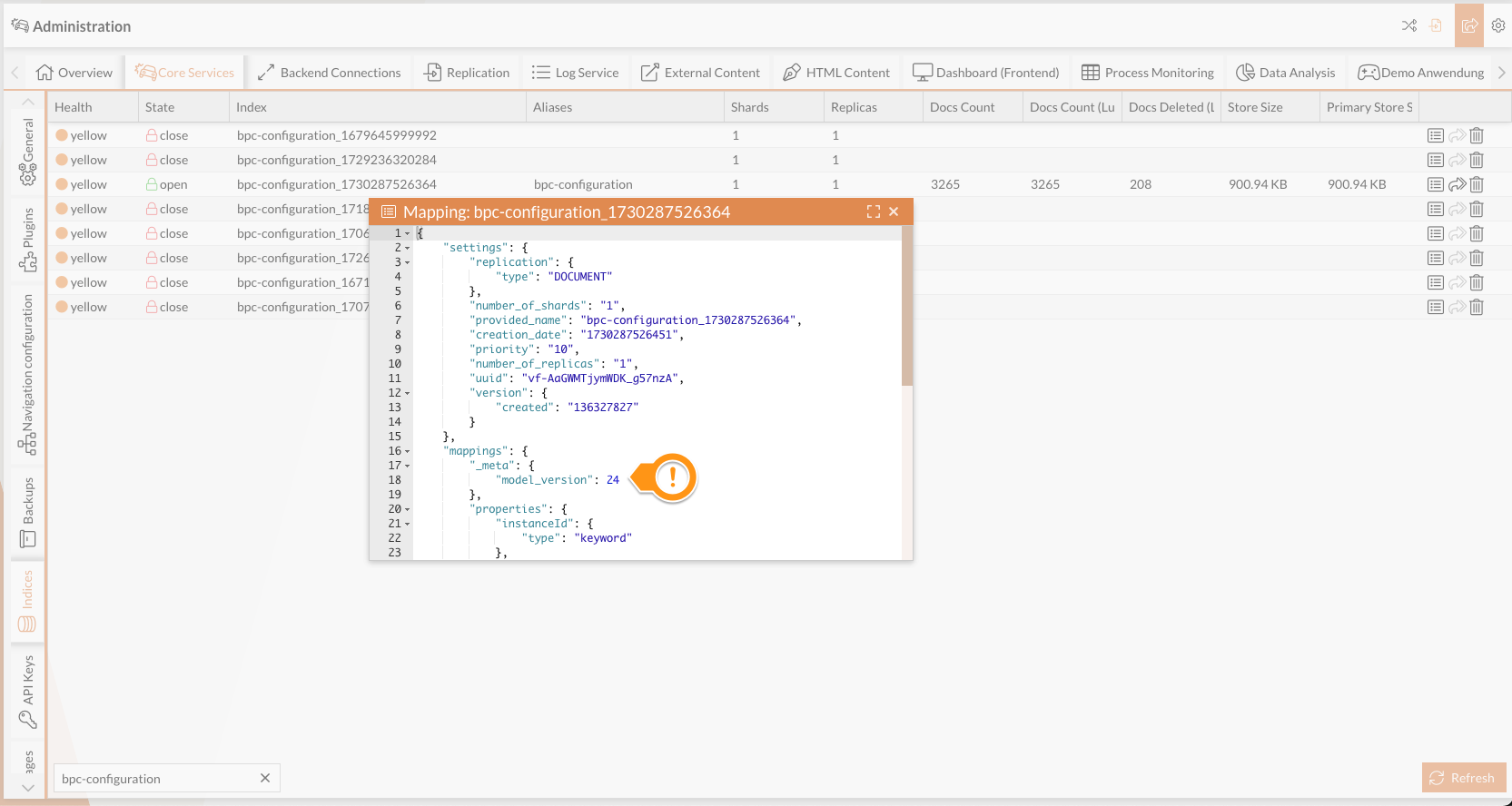

Illustration 1. Version number in the mapping view of the bpc-configuration index

Alternatively, this information can also be retrieved directly via OpenSearch at the URL https://SERVER:PORT/bpc-configuration?pretty. There, this information can also be found under model_version.

Example query using CURL

curl --insecure -u USER:PASSWORT 'https://localhost:9200/bpc-configuration?pretty'

Output of the example query using CURL (abridged)

{
  "bpc-configuration_1739522947935" : {
    "aliases" : {
      "bpc-configuration" : { }
    },
    "mappings" : {
      "_meta" : {
        "model_version" : 24
      }
    }
  }
}

Examples for authentication with OpenSearch can be found on the Direct OpenSearch Access page.
