Technical Workflow Diagrams

Usage

You use Technical Workflows to implement your business models, which are available e.g. as a Business Process Diagram.

You can link a Technical Workflow to the corresponding business model to categorize any errors that might occur during operation.

For an introduction into the Technical Workflows topic, refer to Integrating Systems and Automating Processes.

Signaling changes in linked diagrams

If your business model is linked to a Technical Workflow, changes to the business model are indicated in the Technical Workflow.

Refer to Displaying Change Information for Linked BPDs and TWFs.

Modularizing Technical Workflows

You can modularize Technical Workflows and reuse the modules in different Technical Workflows.

Refer to Refactoring: Connecting Technical Workflows to Workflow Connectors.

Configuring the execution

From each Technical Workflow, several instances can be executed in parallel. You specify the execution properties in the workflow diagram.

Refer to Execution Tab - TWF Only

Human workflows

You use task generators to integrate employees or business partners into your Technical Workflows.

Refer to Task Generator

Ad-hoc processes

You can start processes spontaneously using the Task List of the portal, if you have configured modules contained in these Technical Workflows accordingly. By doing so, you can, for example, create new tasks anytime.

Refer to Creating Ad Hoc Processes.

Validating Technical Workflows

You can let Technical Workflows validate. In doing so, the following aspects are checked:

Are there Demultiplexers without otherwise branches?
Are there If elements without else branches?
Are there deadlocks?
Do the links work?

Refer to Validating Diagrams - Syntax Check

Tools in Technical Workflow Diagrams

Name	Description	Refer to
Switch	By using a Switch, you can control the message flow depending on one or more conditions. For this purpose, you create several sub-processes in the Switch element and define for each sub-process on which conditions the sub-process is to be executed. When configuring the conditions, you can define in which order the sub-processes are to be checked. As a rule, the first sub-process whose conditions are met is always executed.	Using Switch Elements
If	Use the If tool to make further process execution depending on conditions. In the If tool, you can create several sub-processes. For each sub-process, you define one or more conditions. When configuring the conditions, you can define in which order the sub-processes are to be checked. As a rule, the first sub-process whose conditions are met is always executed.
While	The While tool contains a sub-process, checks the given break condition before it executes the sub- process and repeats the sub-process as long as the break condition is not fulfilled.	Using While Loops
Repeat Until	The Repeat-Until tool contains a sub-process, executes it once, then checks the given break condition and repeats the sub-process until the break condition is fulfilled.
For Each	The For-Each tool contains a sub-process and executes it until a given final value is reached. Incrementing starts at a given start value. If the start value is greater than the final value, the loop is not executed at all. Start or final values must be positive, otherwise an error is thrown. All For-Each tools implicitly contain a scope, thus, you can define an error and compensation exit.
Flow	By using the Flow tool, you can execute two (or more) sub-processes in parallel.
Pick	By using the Pick tool, you define that the workflow has to wait for a message. The Pick tool can make a difference between message types, since it includes one or more OnMessage modules, each with a corresponding message type assigned to it, which is to be waited for by the Pick tool.
Scope	A scope combines several activities to one unit to which you can assign common error handling and compensation.	Handling and Compensating Errors with Scopes
Transaction Scope	You can use a Transaction Scope to summarize to one transaction the actions of several database-based system connectors that access the same database. If the actions of all connectors in the Transaction Scope are executed successfully, the transaction is confirmed. Otherwise, the transaction is rolled back.	Managing Transactions with the Transaction Scope
Partner Management	Using partner management you can integrate large numbers of external business partners into the supply chain and thus into your company’s business processes. The partner management helps you performing the following tasks: Receiving messages from various partner systems via different communication paths, like HTTP, FTP, POP3, AS2. Partner-specific editing of messages in order to process them in a uniform way. Sending messages to partners exactly in those formats and via those communication paths the partners expect.	Partner Management
Frame	For visually grouping elements that belong together content-wise.	Structuring Workflows with Frames
Comment	For adding a note anywhere on the workspace.
Text	For inserting user-specific texts that can be placed anywhere on the workspace.

Name

Description

Refer to

Switch

By using a Switch, you can control the message flow depending on one or more conditions. For this purpose, you create several sub-processes in the Switch element and define for each sub-process on which conditions the sub-process is to be executed. When configuring the conditions, you can define in which order the sub-processes are to be checked. As a rule, the first sub-process whose conditions are met is always executed.

Using Switch Elements

Use the If tool to make further process execution depending on conditions. In the If tool, you can create several sub-processes. For each sub-process, you define one or more conditions. When configuring the conditions, you can define in which order the sub-processes are to be checked. As a rule, the first sub-process whose conditions are met is always executed.

While

The While tool contains a sub-process, checks the given break condition before it executes the sub- process and repeats the sub-process as long as the break condition is not fulfilled.

Using While Loops

Repeat Until

The Repeat-Until tool contains a sub-process, executes it once, then checks the given break condition and repeats the sub-process until the break condition is fulfilled.

For Each

The For-Each tool contains a sub-process and executes it until a given final value is reached. Incrementing starts at a given start value. If the start value is greater than the final value, the loop is not executed at all. Start or final values must be positive, otherwise an error is thrown. All For-Each tools implicitly contain a scope, thus, you can define an error and compensation exit.

Flow

By using the Flow tool, you can execute two (or more) sub-processes in parallel.

Pick

By using the Pick tool, you define that the workflow has to wait for a message. The Pick tool can make a difference between message types, since it includes one or more OnMessage modules, each with a corresponding message type assigned to it, which is to be waited for by the Pick tool.

Scope

A scope combines several activities to one unit to which you can assign common error handling and compensation.

Handling and Compensating Errors with Scopes

Transaction Scope

You can use a Transaction Scope to summarize to one transaction the actions of several database-based system connectors that access the same database.

If the actions of all connectors in the Transaction Scope are executed successfully, the transaction is confirmed.
Otherwise, the transaction is rolled back.

Managing Transactions with the Transaction Scope

Partner Management

Using partner management you can integrate large numbers of external business partners into the supply chain and thus into your company’s business processes.

The partner management helps you performing the following tasks:

Receiving messages from various partner systems via different communication paths, like HTTP, FTP, POP3, AS2.
Partner-specific editing of messages in order to process them in a uniform way.
Sending messages to partners exactly in those formats and via those communication paths the partners expect.

Partner Management

Frame

For visually grouping elements that belong together content-wise.

Structuring Workflows with Frames

Comment

For adding a note anywhere on the workspace.

Text

For inserting user-specific texts that can be placed anywhere on the workspace.

Using Switch Elements

By using a Switch you can control the message flow depending on one or more conditions. For this purpose, you create several sub-processes in the Switch element and define for each sub-process on which conditions the sub-process is to be executed.

When configuring the conditions you can define in which order the sub-processes are to be checked. As a rule, always the first sub-process whose conditions are met is executed.

To catch errors you can define a sub-process, which is always to be executed if none of all conditions at the other sub- process is met. This sub-process is called otherwise branch:

workbench user guide 603 1

If no condition defined in the Switch applies and if there is also no otherwise branch the execution is continued at the end of the switch.

You can change the background color, line color and line type of switch.

Refer to Editing the Layout of Diagram Elements

Proceed as follows

From the sidebar open the Tools docking window, click Tools and drag the Switch element into the working space.
Create the sub-processes in the Switch.
Connect the first modules of the sub-processes with the Switch entry.
Connect the modules at the end of the sub-processes with the Switch exit.
To define the conditions, proceed as follows:
1. Select a connection between the Switch entry and a sub-process.
2. Open the context menu and select Edit switch configuration. Alternatively, double-click the connection. The following dialog is displayed:

  For explanations on the controls refer to Dialog Demultiplexer Configuration.
Click OK to close the dialog.

Using While Loops

Using a While loop you can let workflows or parts of them execute repeatedly. The workflow is repeated until a cancel condition is reached.

The cancel condition is checked before the workflow is executed. Thus, a workflow may not be executed at all because the cancel condition is already met.

If the cancel condition is never attained or has not been defined, the workflow will be repeated infinitely!

In order the make the number of executions dependent from a counter variable, use an XSLT Converter or the variables mapping for incrementing or decrementing the variable value.

Example

In the example shown, the loop is executed until the value of the Counter variable (of the String type) is greater than the string 0 (Null). After every pass the XSLT Converter reduces the value of counter by 1 and inserts it in a text node. The value of the text node is reassigned to the counter variable in the following assign module. The current value of counter is then compared with the condition counter greater than string 0 before every pass.

Proceed as follows

From the sidebar open the Tools docking window, click Tools and drag the While element into the working space.
Drag the modules whose actions are to be repeated onto the While element.
Connect the first module to the While loop entry (on the left) and the last module to the exit (on the right).
To define the cancel condition, double-click the connection between the entry and the first module. The following dialog opens:

Enter a description for the condition. The description is shown on the connection line. If no description is given, the condition itself is displayed.

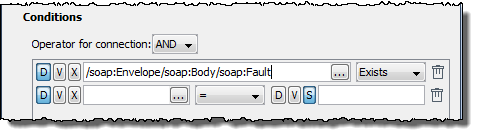

Add condition (button)

Shows the following control fields for defining conditions:

Operator: For connecting two or more conditions.
- AND: All conditions must apply.
- OR: One of the conditions must apply.
Button D: The condition applies to an element in the XML based data stream. In the input field, an XPath expression to must be entered.

If there is a sample XML file, click on the button and select the element interactively.
Button V: The condition applies to a system variable. The list offers all system variables.
Button X: The condition applies to an XPath expression The XPath is processed on an empty document, not on the data stream. The button opens a wizard for creating the XPath expression.

Operator selection box

Selects an operator for a value comparison. The following operators can be selected:

Operator	Meaning
=	equal to
<	less than
>	greater than
>=	greater than or equal to
⇐	less than or equal to
!=	not equal to
Exists	exists
NotExists	does not exist
XPath	XPath expression

Operator

Meaning

equal to

less than

greater than

greater than or equal to

⇐

less than or equal to

not equal to

Exists

exists

NotExists

does not exist

XPath

XPath expression

Buttons D and V: See above.
Button S: The condition applies to a string.

Example:
/ORDER/ORDERTOTAL > 1000
/ORDER/DELIVERY/ = Express
/IBISProfile/Profile/Name Exists

If the Name node exists in the incoming message, then the loop is carried out again.
count(/Order/test1) > 1

If the XPath function’s count analysis shows that the` /Order/test1` node exists more than once, then the while loop is carried out again.

Close the dialog. The condition is shown on the connection line.
Insert an XSLT converter module in which the value of the counter is increased or reduced.

Using For Each Loops

Usage

To execute a sub-process until a given final value is reached, add a For Each loop from the Tools sidebar.

All For Each tools implicitly contain a scope, thus, you can define an error and compensation exit as well as variables with a life span limited to this tool, refer to Workflow Variables and Mappings.

Call up

To configure the For Each module properties, double-click the connection between the left F sign and the first module within the For Each frame.

Example

workbench user guide 607 1

Dialog description

Counter name

Enter a unique name for the counter.
Start value of counter
Button D: The value applies to an element in the XML based data stream. In the input field, an XPath expression must be entered.

If there is a sample XML file, click on the button and select the element interactively.
Button V: The value applies to a variable. The list offers all variables.
Button X: The value applies to an XPath expression. The XPath is processed on an empty document, not on the data stream. The button opens a wizard for creating the XPath expression.
Button S: The value applies to a static value.
Final value of counter

Refer to Start value of counter above.

Use completion condition

To define a value that stops the execution of the For Each loop. If checked, the execution stops if the number of executions has reached the given value.

The value is ascertained only once when executing the loop for the first time, e.g. from an XPath. In the following executions the ascertained value is compared with the current number of executions.

Refer to Start value of counter above.

Handling and Suppressing Errors

In each workflow, there can be exceptions to the expected execution time. To handle these exceptions, the INUBIT software offers various powerful mechanisms for error handling and restoring.

Error analysis

By default, all workflows where an error that is not handled occurs in a module during execution are displayed with the Error status in the Queue Manager. The execution of the workflow is terminated.

To analyze the error, the Queue Manager displays all process steps to the error, the current message including the workflow variables in the module with the error and the error message.

You can restart the unsuccessful workflow with a new or changed file in the Queue Manager.

Refer to Queue Manager: Monitoring Running Processes

Notifications in case of an error

In case of errors in workflow executions, the INUBIT software can automatically send notifications to the owner of the workflow and the system administrator (root).

Refer to Alerting

Error variables

In case of errors, error variables are generated, which you can evaluate using Variables Mapping.

Refer to System Variable Overview

Avoiding connection errors

If the connection to an external system cannot be established you can configure the system connectors to retry to connect automatically. During the retry, the process has the status Retry in the Queue Manager. For each attempt to connect the entry in the Queue Manager is updated. For each unsuccessful attempt the counter is incremented.

Refer to Dialog System Connector Properties

Error handling

For system connectors and modules you have the following options for handling errors so that the workflow is stable and continued after an error occurs:

Substitute connector for system connectors

You can assign another system connector to a system connector as a substitute connector. If an error occurs, the substitute connector is executed after the last failed retry attempt. That way, the workflow can be completed successfully despite the error.

Refer to Using Modules as Error Branches.
Error branch on modules

You can define an error branch for each module. When an error occurs, the execution of the workflow is continued at the error branch with the inbound message of the module. You can query the error status via workflow variables.

Refer to Using Modules as Error Branches.
Throw modules for defined errors

A throw module generates an error that can be caught by the error branch of a scope or module or by a workflow connector.

Refer to Throw

Cross-module error handling and compensation

You can define a joint validity area, called scope, for several connected modules and thus control error handling and compensation across modules.

Refer to Handling and Compensating Errors with Scopes.

Suppressing errors

If an error in a module or scope is already caught and handled by one of the described mechanisms, you can specify that the error is to be suppressed in the module or scope. With this configuration, the workflow is continued at the error branch and the workflow execution is rated as successful. The incorrect workflow execution is shown in the system log but no entry is generated in the Queue Manager.

Suppressing Errors in Modules: Refer to Dialog General Module Properties
Suppressing Errors in Scopes: Refer to Configuring Error Handling in a Scope.

Handling errors in linked workflows

If the execution of a workflow that is linked to another workflow through a workflow connector is terminated with an error, the configuration of error processing and the workflow call stack on the workflow connector decide how the process continues.

Refer to Dialog Workflow Selection and Properties in the Workflow Connector

Using Modules as Error Branches

You can define a second error branch for each module. In case of an error, the error branch receives the input message and the error message of the module with the error and can process these.

Alternatively, you can use a Scope to handle errors, refer to Configuring Error Handling in a Scope.

Example

In the example below: compressed messages are sent to an FTP Connector. If the FTP Connector throws an error, the compressed messages are forwarded to the error branch and saved in the file system by the File Connector. The error message is stored in a system variable.

workbench user guide 609 1

Refer to Workflow Variables and Mappings

Proceed as follows

Add the module whose errors you want to process and at least two modules you want to use as the error branch to the workflow.
Press the Ctrl key while selecting first the module whose errors you want to process and then the first Module of the error branch.
Open the context menu of one of the marked modules and select Connect as error branch.

→ The two modules are connected as error branch.

Using a System Connector as the Standby Connector

You can define standby connectors for all system connectors. A standby connector is another system connector that takes over the tasks of the primary system connector if they could not be executed successfully. There can also be a standby connector for every standby connector.

Example

In the example below, compressed messages are sent to an FTP Connector. If the FTP Connector is not available, the compressed messages are forwarded to the standby connector which saves them in the file system.

If both a standby connector and an error branch have been defined for a system connector, both are used: first the error branch and then the standby connector.

workbench user guide 610 0

Refer to Workflow Variables and Mappings

Proceed as follows

Insert the system connector and the standby connector into the workflow.
Hold down the Ctrl key and use the mouse to first select the system connector and then the standby connector.
Open the context menu and choose Connect as standby connector.

→ The connection to the standby connector is established.

Handling and Compensating Errors with Scopes

In Technical Workflows, you can define a common validity area (scope) for several connected modules and thus control the following aspects across modules:

Error handling

All modules in a scope can use the error branch of the scope. Each type of error can be handled individually at the error branch.
Compensation

You can use the Compensate Scope or Compensate module to define a rollback mechanism. When this happens, the scope is exited without generating an error.
Encapsulating workflow variables

For information about the handling of variables in scopes refer to Validity scope of workflow variables.
Suppressing Errors

You can centrally activate the suppression of errors for all modules of a scope.

Scopes can be nested and are then processed from the inside outwards.

Configuring Error Handling in a Scope

The error branch of a scope captures errors thrown by modules in the scope that are not handled by error branches of the modules themselves. Errors that are captured by error branches are not passed on to the scope in which the modules are placed.

If an error occurs within a scope, it is checked if there is a matching workflow at the error branch of the scope. If this is not the case, the default exit is used (if there is one).

Example

Module A in the scope throws error 123. This is handled by the Do-Error-Handling-XYZ module in the error branch 123 of the scope. No corresponding error branch is available for errors other than 123, so for all other errors the catch-all branch is used.

workbench user guide 611 1

Proceed as follows

Drag the module with which an error is to be handled onto the Designer workspace.
Connect the module with the scope’s error symbol .

Open the connection line’s context menu, then select Edit configuration. Alternatively, double-click the connection. The following dialog is displayed:

workbench user guide 611 3

In the list, the module with which you have connected the error branch is displayed. The first module that you connect with the error exit is configured as catch all, by default. This exit makes sure that all errors are caught. With each additional module, you can handle one error more specifically.

You do not have to configure all errors individually and open the dialog multiple times. Instead, you can create all instances of error handling, connect them to the error branch, then configure them all in the same dialog by selecting all connected modules in the list, one by one, and assigning them each an error name.

In the Error name field, enter the name of the error or select one of the existing error names: In the list, error names from Throw modules, and Web Services Output Connectors are displayed. For other modules, you find the error name within the system variable `ISErrorString `after running a test. The fields in the Error data section only refer to errors thrown by a Throw module or a WebService Connector module.

These error data fields are used mainly to catch errors that are thrown by a Throw module or a Web Services Connector located in a Scope.

If a Web Services Connector is placed within a Scope and if one or several possible error returns are defined in its WSDL, these error names are displayed in the Error name combo box.

Each error has a defined error data type that is displayed in the Type field. You can define that the error data are saved to a variable of this type. In addition, the ISErrorText and ISErrorString variables are written.

For Throw modules located in the Scope, the error names configured therein are also displayed in the Error name combo box.

Default error exit: In order to capture errors for which no special error branch has been created, check the Use this connection if no conditions on other connections apply (Catch all) checkbox.

If you have two nested scopes and no default exit can be found for a scope within another scope, then the default error exit of the outer scope is used.

Click OK to close the dialog.

→ The error name is displayed on the connection line.

Configuring Compensation in Scopes

The compensate scope allows to undo changes made in the scope by one or more modules in case of an error. This is the equivalent of the rollback mechanism in transactions.

Functional principle

If there is a sequence of scopes containing individual actions and an error occurs within one action, then the actions are rolled back by a specific workflow. This workflow must be connected with the Compensate exit of the corresponding scope by a Workflow Connector. In the Workflow Connector the module must be configured which is suitable for the erroneous action. The scope containing the actions must be contained in another scope. For this scope an error exit with a Compensate module must be defined.

Example

After an erroneous action in the ScopeC the action in ScopeB is rolled back and then the action in ScopeA.

workbench user guide 613 1

The actions in ScopeA, ScopeB and ScopeC are executed.
The action in ScopeC returns an error.
The error is handled by the error exit of the CompensateScope by the Compensate module CompensateIt.
The Compensate module takes care that for all scopes the Workflow Connectors are started which are connected with the corresponding Compensate exit and that the workflows contained in the scopes are executed.

The actions in the scopes are rolled back in reverse order compared to the workflow execution, that means first ScopeB and then ScopeA.

Proceed as follows

Drag all modules executing the actions that should be compensated into one or more scopes (in the example the scopes ScopeA, ScopeB and ScopeC).
Create another scope (in the example the scope CompensateScope).
Drag the scopes containing the actions into the scope created in step 2.
Connect the scopes.
Insert a Compensate module (in the example the module CompensateIt).

Refer to Compensate
Connect the Compensate module with the error exit of the scopes CompensateScope.

In order to roll back only a selected action when a specific error occurs, you can also use the Compensate Scope module.
Define the workflow which rolls back the changes, if required with a separate module for each scope.
Connect the workflow with a Workflow Connector (in the example the Workflow Connector CompensateWF) with the compensation symbol of the scopes, whose actions should be rolled back in case of an error. This workflow is activated as soon as an error occurs in one of the contained scopes.

Configuring Error Suppression for All Modules in a Scope

For information about the effects of error suppression refer to Handling and Suppressing Errors.

Proceed as follows

Double-click the scope properties icon on the scope:
A dialog opens.
Select the option Consider workflow as successful despite processed Error Scope.
Click OK to close the dialog.

→ On all modules in the scope, a flash symbol indicates that error suppression is active.

Refer to Symbols at Modules in Technical Workflows.

Managing Transactions with the Transaction Scope

You can use a Transaction Scope to summarize the actions of several database-based system connectors that access the same database to one transaction:

If the actions of all connectors in the Transaction Scope are executed successfully, the transaction is confirmed.
Otherwise, the transaction is rolled back.

Supported system connectors

In each Transaction Scope, you can use the following system connector:

Database Connector with activated transaction mode

Error in the Transaction Scope

A Transaction Scope has a rollback exit that can be connected to a module. The execution of the module at the rollback exit is triggered by each rollback and by the following events:

Undefined error in the execution of modules in the Transaction Scope.
A throw module in the Transaction Scope is executed, handling a defined error.

Refer to Throw
The timeout of the Transaction Scope is exceeded.

The execution of the modules within the Transaction Scope took longer than permitted by the timeout of the Transaction Scope.

If no module is defined at the rollback exit, the execution of the workflow is interrupted and an error is generated in the Queue Manager.

Example

This workflow is first used to book a hotel room (Database Connector First_Operation) and then a suitable flight (Database Connector Second_Operation). If no hotel room is available, a throw module is executed and thus triggers a rollback of the transaction. The Workflow Connector is then executed at the rollback exit and sends an info e-mail to the person responsible.

workbench user guide 615 2

Prerequisites

You can only summarize transactions of Database Connectors in a Transaction Scope if the connectors access the same database!

Proceed as follows

Insert a Transaction Scope into your Technical Workflow.
Create and configure the modules in a transaction scope.
Connect the first module in the Transaction Scope with the entry of the Transaction Scope and the last module with the exit of Transaction Scopes.

Activate transaction mode

Open the context menu of a Database Connector and choose Set transaction mark.

Activate transaction mode for all Database Connectors within the Transaction Scope! If transaction mode is not active, the system connectors work as usual and the transactions are not summarized!

Define a timeout

Double-click the TA symbol of the Transaction Scope entry. A dialog opens.
Enter the timeout.
Click OK to close the dialog.
Publish the workflow.

Refactoring: Connecting Technical Workflows to Workflow Connectors

Refactoring offers the possibility to improve the structure of existing Technical Workflows subsequently without modifying their behavior. By doing so, you can optimize readability and maintainability of Technical Workflows and thus significantly reduce the expense for error analysis and functional extensions.

Refactoring means to transfer selected modules into a newly created Workflow. Both Workflows are connected with each other by a Workflow Connector.

If you transfer system connectors, their names may get postfixes in order to keep them unique.

One system connector is available in only one Technical Workflow, because the INUBIT licensing mechanism allows a system connector to be used in just one workflow. If you copy system connectors you need additional licenses. Thus, outsource system connectors in separate workflows. You can access the system connector workflow by using a Workflow Connector from any other module in a Technical Workflow.

Proceed as follows

Display the Technical Workflow in a local directory.
In the source workflow select all modules, which are to be transferred into the new Technical Workflow.
Open the context menu and select Replace by Workflow Connector. The wizard for creating a new Workflow Connector opens.

Refer to Workflow Connector
Name the Workflow Connector and let you guide by the wizard through the creation of the new workflow and the workflow connector.

→ After finishing the wizard the source workflow is displayed. The new Technical Workflow containing the transferred modules was added to the same directory.

Configuring the Variable Transfer for Linked Technical Workflows

Usage

In each Technical Workflow, you can define whether all variables or only selected variables are to be transferred to the workflow when a workflow is called. You also specify whether the workflow variables are to be returned to the calling workflow.

You can use this function to encapsulate workflow-related variables and avoid errors that can be caused by uncontrolled forwarding of variables.

Procedure

Encapsulate workflow

You configure the variable transfer in the workflow in the Variables docking window.

Refer to For jump into this workflow

The following applies to workflows that were created in the INUBIT software: The variable transfer for linked workflows is restricted by default, that is to say, only variables that are explicitly defined as input/output variables are transferred or accepted.

The following applies to workflows that were created in INUBIT versions < 5.3:

The variable transfer is not restricted, that is, all variables are transferred and accepted.

Define input and output variables

If you have encapsulated the workflow, you must also specify for all module variables and self-defining variables whether these are workflow input or output variables or both:
- Workflow input variables are variables that the sub-workflow needs for execution. These variables must be provided and transferred by a calling workflow.
- Workflow output variables are variables that the sub-workflow returns to the calling workflow. Output variables are only returned if the sub-workflow is called synchronously.

  Refer to Dialog Descriptions Workflow Connector.
Configure the variable transfer

In the workflow connector of the calling workflow, you specify how the values for the workflow input variables are transferred to the sub-workflow and how the value of the output variable is copied to the calling workflow. When the sub-workflow is called it is checked whether all required input variables have been transferred. If this is not the case, a corresponding error message is output.

Prerequisites

At least two linked workflows already exist.

Proceed as follows

Open the sub-workflow for editing.

Always start with the bottom workflow to define the variable transfer. The bottom workflow is that which is called by one or more workflows but does not call any other workflows itself.

Encapsulate workflow
Open the Variables docking window and ensure that the Only use input/output variables option is selected in the For jump into this workflow area.
Define a variable or edit an existing one.

Refer to Defining Variables

Define the function of the variable
In the Variable definition dialog, display the Transfer upon workflow call tab.
Specify whether the variable is a workflow input variable or a workflow output variable or both.

Refer to Define input and output variables above.
Enter a standard value (data type string or XML) if the variable is a workflow input variable. The default value is used if the variable is transferred without a value:
Click OK to close the dialog.

In the Variables docking window, a symbol on the variable indicates its function.
Publish the workflow.

Configure the transfer on the Workflow Connector
Open the calling workflow for editing. The Variable mapping symbol V of the Workflow Connector is now highlighted in color.
Double-click the V symbol:

The dialog opens:

This dialog displays mapping rows for each of the variables defined as input variables or output variables in the linked workflow. These rows have a different background color.

For the input variables, any kind of mapping source can be selected in the Source section. If the input variable has a default value, it is pre-selected by default. Otherwise, in the Source column, the entry is highlighted in red to show that the expected input variable has not yet been assigned to a workflow variable in the current workflow.

To assign a Source, click the row with the desired mapping rule.

For the output variables, only a variable can be selected as the target.

By default, the “–” entry is pre-selected in the drop-down menu to indicate that the value of this output variable is not needed in the calling workflow.

In the Handling of input/output variables section, you can click the Create 1:1 mappings button to create same-named source variables for the input/output variables of the linked workflow.
Click OK to close the dialog.

Using XML Schemas from the Repository as References in Workflows

You can use one or more XML Schemas stored in the Repository as references in Technical Workflows, for example to define the structure of variables. In principle and if it exists, the workflows always use the active schema tag corresponding to the workflow tag, otherwise they use the HEAD version of the XML Schemas.

When using tagging

If a tag is active at a workflow, the one schema is used that is marked with the corresponding tag.

If no active tag is available, the HEAD version of the XML Schema is used.

Checking schemas in and out

You can edit the XML Schemas directly at the workflow. For editing a copy of the XML Schema is created.

After editing you can choose whether your changes are to be stored in the Repository and thus be available globally or whether the modified XML Schema should be used only locally by the current workflow:

Making changes in the XML Schema available globally

After editing, check in the XML Schema into the Repository.
Using the changed XML Schema locally

Do not check in the XML Schema. The workflow uses the local copy until you remove the copy and replace it by a reference to the XML Schema stored in the Repository.

Proceed as follows

Open the workflow for editing.
From the sidebar open the docking window Schemas.
Loading the XML Schema from the Repository:
1. Click the button. A menu opens up.
2. Select Open from > Repository. The Repository Explorer opens.
3. Navigate to the XML Schema and load it. The XML Schema is displayed.
Click Edit.

The HEAD version of the XML Schema and buttons for checking in and discarding changes are displayed:

Edit the XML Schema.
- To store the XML Schema back into the Repository click Check-In.
- To reject the changes and to load the original XML Schema from the Repository, click Discard. After a confirmation prompt the currently displayed file is overwritten by the head version stored in the Repository.

Web Services

Call up

INUBIT Workbench > Designer > Sidebar > Web Services

Option	Description
PartnerLinks	PartnerLinks contain the web services involved in a business process. A PartnerLink always consists of a local endpoint and a partner endpoint: Local endpoints are represented by Receive modules or Input Web Services Connectors. Partner endpoints are the Web Services that are invoked by Invoke modules or Output Web Services Connectors.
WSDLs	The WSDL file describes the operations, data and exchange protocols the Web Service offers. This information is machine readable. Based on this WSDL file service consumers create a SOAP request in order to access one of the Web Service’s operations. The Web Service processes the SOAP request and returns the result as SOAP response to the service consumer.
CorrelationSets	The Correlation mechanism is used with asynchronous Web Services to associate response messages to the workflow instance that has sent the asynchronous request. \nA CorrelationSet defines a business value (e.g. order number) that is determined from a soap message and that identifies a running workflow instance. \nThe value is made up of one or more Property values. Thus CorrelationSets define constants that are set during workflow execution. They are used to identify a running workflow instance. CorrelationSets are needed for asynchronous Web Service-Listener or Receive modules. A CorrelationSet is defined at the process (workflow) or within a Scope and named. Properties are assigned to a CorrelationSet. A CorrelationSet must be initiated explicitly at a Web Services Connector. The properties specified in the CorrelationSet are determined from the input message or the output message. Within a running workflow, all of the following Web Services Connectors that uses this CorrelationSet must use the same property values regarding it’s input message or output message.
Properties	Properties are parts of a CorrelationSet and contain unique values in a running workflow instance. The values can be order or customer numbers for example. The properties specified must be stored in a WSDL file.
PropertyAliases	A propertyAlias defines how a Property is filled with a value. To fill this value, you can use a WSDL message and an XPath which is applied on the message, for example.

Option

Description

PartnerLinks

PartnerLinks contain the web services involved in a business process. A PartnerLink always consists of a local endpoint and a partner endpoint: Local endpoints are represented by Receive modules or Input Web Services Connectors. Partner endpoints are the Web Services that are invoked by Invoke modules or Output Web Services Connectors.

WSDLs

The WSDL file describes the operations, data and exchange protocols the Web Service offers. This information is machine readable.

Based on this WSDL file service consumers create a SOAP request in order to access one of the Web Service’s operations. The Web Service processes the SOAP request and returns the result as SOAP response to the service consumer.

CorrelationSets

The Correlation mechanism is used with asynchronous Web Services to associate response messages to the workflow instance that has sent the asynchronous request. \nA CorrelationSet defines a business value (e.g. order number) that is determined from a soap message and that identifies a running workflow instance. \nThe value is made up of one or more Property values.

Thus CorrelationSets define constants that are set during workflow execution. They are used to identify a running workflow instance. CorrelationSets are needed for asynchronous Web Service-Listener or Receive modules.

A CorrelationSet is defined at the process (workflow) or within a Scope and named. Properties are assigned to a CorrelationSet.

A CorrelationSet must be initiated explicitly at a Web Services Connector. The properties specified in the CorrelationSet are determined from the input message or the output message. Within a running workflow, all of the following Web Services Connectors that uses this CorrelationSet must use the same property values regarding it’s input message or output message.

Properties

Properties are parts of a CorrelationSet and contain unique values in a running workflow instance. The values can be order or customer numbers for example.

The properties specified must be stored in a WSDL file.

PropertyAliases

A propertyAlias defines how a Property is filled with a value. To fill this value, you can use a WSDL message and an XPath which is applied on the message, for example.

Symbols in Technical Workflows and in the Directory Tree

Symbols at Modules in Technical Workflows

Symbol	Explanation	Refer to
	Output System Connector	Dialog System Connector Properties
	Input System Connector	Dialog System Connector Properties
	Medium System Connector	Dialog System Connector Properties
	Commented System Connector
	The construction site symbol indicates modifications at linked BPDs and TWFs.	Displaying Change Information for Linked BPDs and TWFs
	The module is an ad hoc process starter.	Creating Ad Hoc Processes
	A transaction marker at a system connector indicates that the system connector is executed in the transaction mode.	Managing Transactions with the Transaction Scope
	Missing configuration at Workflow Connector. The linked workflow expects an input variable. This input variable must yet be assigned to a variable of the displayed workflow.	Configuring the Variable Transfer for Linked Technical Workflows
	If the symbol is displayed permanently: Variables have been created on the module.	Workflow Variables and Mappings
	Workflow Connector is in asynchronous processing mode.	Workflow Connector
	Error supprsion is active	Dialog General Module Properties Configuring Error Suppression for All Modules in a Scope
	The module is locked. You can neither edit it nor display its properties. A module is labeled as Locked if it is owned by a user group which is not visible for the currently logged-in user. For users only modules are visible which are owned by their own group or the group which is directly superordinated. This situation can come up this way, for example: There are three hierarchically structured user groups: B1 > B2 > B3. A module M has been created and published into the uppermost group B1. The module is visible for the group B1 itself and additionally for the hierarchically subordinated group B2. The module M was added to a Technical Workflow which was published into group B2. This workflow is visible for group B2 itself and additionally for the hierarchically subordinated group B3. Now, the module M is displayed as Locked to all users belonging to group B3.	Data Visibility
	The scheduler icon is visible if the system connector is configured as Active and also activated or deactivated in the Scheduler Manager. The icon displays the status Active/ Inactive based on the status in the Scheduler Manager.	Scheduler Manager: Scheduled Processes
	A metadata value of the type External document is displayed as an icon in the* lower left corner of the element.	Using Metadata

Symbol

Explanation

Refer to

workbench user guide 620 0

Output System Connector

Dialog System Connector Properties

workbench user guide 620 0

Input System Connector

Dialog System Connector Properties

workbench user guide 620 1

Medium System Connector

Dialog System Connector Properties

workbench user guide 620 2

Commented System Connector

workbench user guide 621 0

The construction site symbol indicates modifications at linked BPDs and TWFs.

Displaying Change Information for Linked BPDs and TWFs

workbench user guide 621 1

The module is an ad hoc process starter.

Creating Ad Hoc Processes

workbench user guide 621 2

A transaction marker at a system connector indicates that the system connector is executed in the transaction mode.

Managing Transactions with the Transaction Scope

workbench user guide 621 3

Missing configuration at Workflow Connector. The linked workflow expects an input variable. This input variable must yet be assigned to a variable of the displayed workflow.

Configuring the Variable Transfer for Linked Technical Workflows

workbench user guide 621 4

If the symbol is displayed permanently: Variables have been created on the module.

Workflow Variables and Mappings

workbench user guide 621 5

Workflow Connector is in asynchronous processing mode.

Workflow Connector

workbench user guide 621 6

Error supprsion is active

Dialog General Module Properties
Configuring Error Suppression for All Modules in a Scope

workbench user guide 621 7

The module is locked. You can neither edit it nor display its properties. A module is labeled as Locked if it is owned by a user group which is not visible for the currently logged-in user. For users only modules are visible which are owned by their own group or the group which is directly superordinated. This situation can come up this way, for example:

There are three hierarchically structured user groups: B1 > B2 > B3.
A module M has been created and published into the uppermost group B1. The module is visible for the group B1 itself and additionally for the hierarchically subordinated group B2.
The module M was added to a Technical Workflow which was published into group B2. This workflow is visible for group B2 itself and additionally for the hierarchically subordinated group B3.

Now, the module M is displayed as Locked to all users belonging to group B3.

Data Visibility

The scheduler icon is visible if the system connector

is configured as Active and
also activated or deactivated in the Scheduler Manager.

The icon displays the status Active/ Inactive based on the status in the Scheduler Manager.

Scheduler Manager: Scheduled Processes

workbench user guide 622 1

A metadata value of the type External document is displayed as an icon in the* lower left corner of the element.

Using Metadata

Symbols in the Directory Tree

Symbol	Explanation	Refer to
	The workflow is activated.	Activating/Deactivating Diagrams
	The workflow is inactive.	Activating/Deactivating Diagrams
	The workflow can be executed in parallel.	Execution Tab - TWF Only

Symbol

Explanation

Refer to

workbench user guide 622 2

The workflow is activated.

Activating/Deactivating Diagrams

workbench user guide 622 3

The workflow is inactive.

Activating/Deactivating Diagrams

workbench user guide 622 4

The workflow can be executed in parallel.

Execution Tab - TWF Only
