Integrating IGUASU with BPC

IGUASU is a platform for managing data flows from any source, to any destination, and in any format.

It allows users to create and execute flows. Within the flows, various modules (processors) with specific functions are linked using a directed graph. This defines the order of execution as well as the conditions that must be met. This means that branches, loops, and dynamic sequences can be implemented.

Through an integration with the BPC, user inputs and process data can be processed in IGUASU and linked to other external services as an application. Furthermore, results determined in IGUASU can be clearly displayed in the BPC to provide a better overview of existing business processes.

To connect IGUASU to the BPC, several configuration steps must first be completed, which are described in detail in the following section Configuration. Once the connection has been configured, data can be transferred between BPC and IGUASU in both directions. The data exchange and the options available for this are listed in the section Transferring Data Between IGUASU and the BPC.

Further information on configuring Services and processors in IGUASU can be found in the IGUASU documentation.

Prerequisites

To establish a connection between IGUASU and the BPC, you need a BPC application version 4.0 or higher.

Configuration

The configuration for the connection between IGUASU and the BPC is performed in the administration area. Accordingly, you need the appropriate permissions to perform actions in the administration area.
If you encounter any difficulties during configuration, please contact your administrator.
Instructions for configuring the connection in IGUASU can be found in the IGUASU documentation.

Create an API Key

The API key from BPC is used in IGUASU within the HybridRESTClientController Service to establish the connection.

In the administration area, open the Core Services tab and the API Keys sub-tab.
Use the button.
Under "Name" and "Issued to," enter information that makes it easier to associate the key with IGUASU.
Fill in any additional fields as needed.
Assign organizations, roles, and permissions as needed; see Mapping of Organizations, Roles, and Permissions.
Save the settings by clicking the button.

Create a new flow component

A new component must be created in the embedded flow module. This allows connections to be established to the IGUASU processors.

In the administration area, open the Flow tab and the Components sub-tab.
Use the button.
Define "Module_Name" and "Module_Description" for identification.
Under “Target_BaseURL,” enter the appropriate address for IGUASU.
If BPC and IGUASU are running in the same cloud, the URL is “https://iguasu-nifi:PORT ”
The port is defined in the IGUASU HybridRESTServerController.
In addition to the authentication, add the "Connection_Username" and "Connection_Password" entries, which were also defined in the BPCListenerController Service.
Use the button.
Under "URL," "Username," and "Password," make adjustments to the configuration if necessary.
Save the settings using the button.

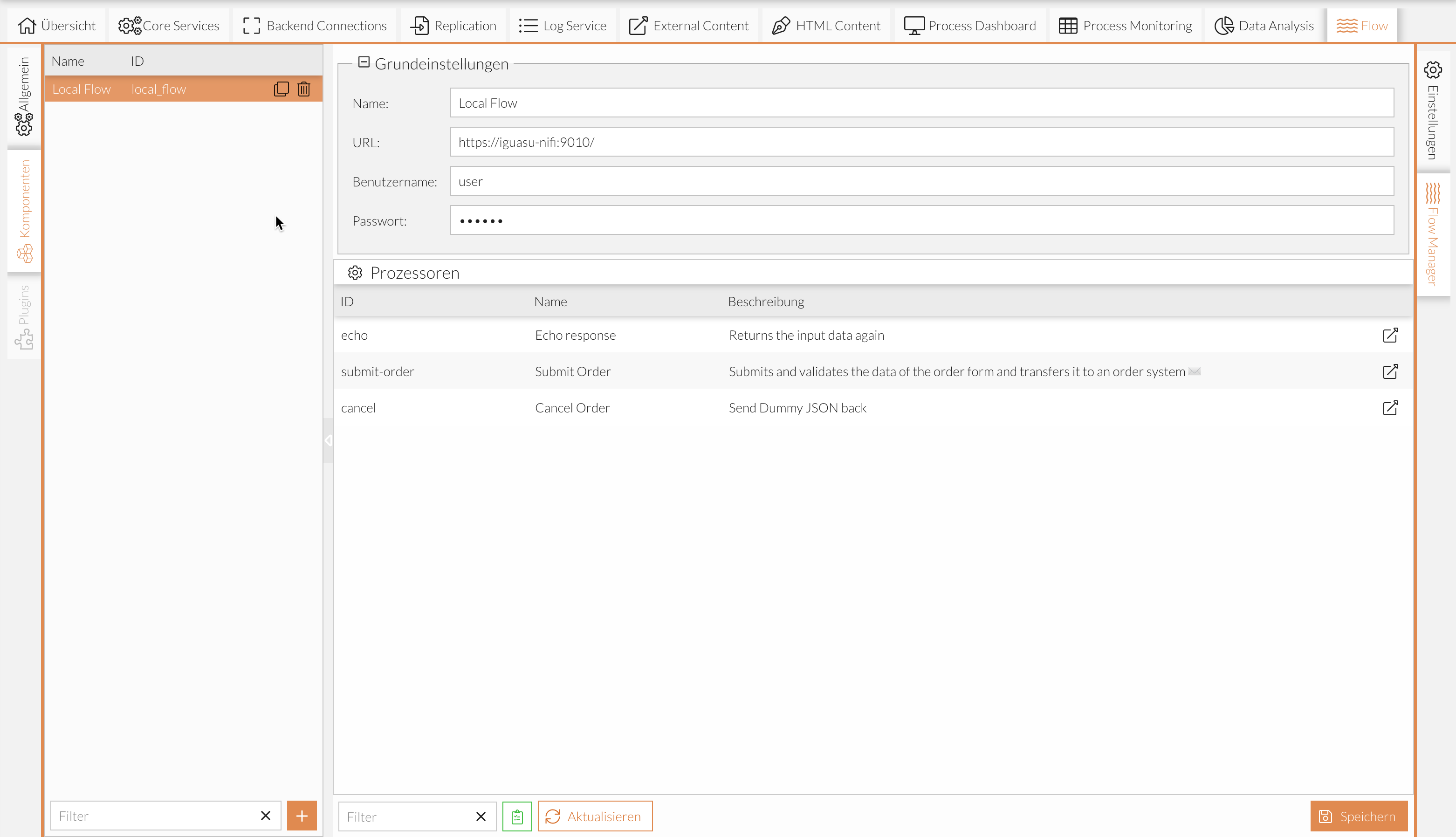

If the configuration is successful, any IGUASU listener processors that have already been created will be displayed in the Processors field.

Transferring Data Between IGUASU and the BPC

Once IGUASU has been successfully connected to the BPC, data can be exchanged between the applications in both directions.
This section describes an example for each direction of data transfer.

From BPC to IGUASU

The first direction of data transfer involves sending information from BPC to IGUASU. User input can be forwarded, for example, using the Forms module. The forms created can be designed and customized as needed to adapt the input options to individual requirements.

Comprehensive information on configuration and the module’s elements can be found at Forms.

For communication with IGUASU, the submitURL must also be adjusted as part of the module’s general configuration. Under `configurations` in the Forms code, enter the IGUASU component you created, where the corresponding listeners were defined. In the submit URL, enter both the ID of the component you created and the ID of the ListenBPCFlowStarter processor in IGUASU.
By default, the path is /bpc/cxf/bpc-flow/flow/KOMPONENTEN_ID/PROZESSOR_ID.

If the configuration is successful, the form’s completed content, along with additional data, is transmitted to the corresponding ListenerBPCFlowStarter processor.

From IGUASU to BPC

In IGUASU, data can be returned both to the AuditLog monitor and to process monitors created in BPC. The procedure for both methods is described in the following two sections.

Creating Audit Logs

Audit logs require no further configuration once the BPCController Service has been set up in IGUASU. The audit level, action, and source are defined in the PutBPCAuditLog processor in IGUASU. The generated audit log is then displayed in the AuditLog Monitor, providing a better overview of the actions.

Creating Process Logs

In addition to audit logs, more specific process logs can also be generated; these are displayed in preconfigured process monitors and provide a better overview of business processes. For this purpose, two components are required, which must be configured in advance.

First, a ProcessLogger is required, which can be used in IGUASU to transmit the relevant data. Detailed information on this can be found in the Log Services section.
No further adjustments are necessary in BPC for use in IGUASU. However, care should be taken to ensure that the configured structure matches the data in IGUASU to prevent errors during transmission. Once the Process Logger has been created, it should be available as a selection option in the PutBPCProcessLog processor in IGUASU.

In addition, you must configure a process monitor on which the generated data will be displayed. Detailed information on customization options and settings can be found in the section Process Monitoring. Similar to the Process Logger, no specific configurations are required for IGUASU, so the module can be used immediately after creation without further adjustment.

Jump from BPC to IGUASU

Errors or irregularities that become visible in BPC Process Monitoring (e.g., a failed process step) often require closer investigation to identify the cause. By navigating to IGUASU, You can view the details of the specific processor responsible for that process step. This might, for example, reveal that the processor received an invalid input.

Navigating to IGUASU is therefore useful for error analysis and for tracing the origin and processing of data.

If AuditLogs or ProcessLogs have been created, a column with the index “ externalReference ” is generated on the corresponding monitor. This column can be configured in the column settings (Monitor_ColumnConfig) so that you can jump from the monitor with a single click to the processor or Service in IGUASU that executed the event that wrote this data. If the event is too old and therefore no longer available, you will still be directed to the processor or Service.

It is necessary to have created the flow component beforehand, because the ID of this component must be specified in the column configuration.
Monitor_ColumnConfig for the “ externalReference ” column:

{
    "filter": {
        "type": "json"
    },
    "hidden": false,
    "dataIndex": "externalReference",
    "hideable": true,
    "width": 200,
    "customRenderer": "flow!_!flowRenderer", (1)
    "minWidth": 64,
    "hideUnknownObjects": true, (2)
    "text": "externalReference",
    "sortable": true,
    "linkIcon": "x-fal fa-fire", (3)
    "flowId": "mein-iguasu" (4)
}

1	Required if the column’s content is to be transformed into a link.
2	Optional. Hides unknown objects that are not of type `iguasu` or `inubit`.
3	Optional. Defines the icon displayed next to the text.
4	Required to generate links using the customRenderer. ID of the Flow component that the system references to write data to the monitor.

More information about the monitor column configuration can be found here.
