Keycloak as an identity provider

Keycloakfootnote: [Keycloak is a trademark of The Linux Foundation] is an "Open Source Identity and Access Management" that can be used as an identity provider (IdP) for user authentication and authorization.

The following describes how to configure the BPC with Keycloak as an identity provider.

Prerequisite

You have installed Keycloak and have administrative access to Keycloak and BPC.

You should always use the latest version of Keycloak to avoid security risks.

Configuration Keycloak

Please create a realm for the BPC or use an existing realm that you may already be using for other applications.

It is not recommended to use the realm master. This should only be used for administrative Keycloak access.

A script that configures the following points via API can be found in the section Script for automatic setup.

Create client

A client must be created so that the BPC can communicate with the Keycloak.

  1. Make sure that you have selected the correct realm.

  2. Select "Clients" on the left-hand side

  3. Create a new client via "Create client"

  4. Select "OpenID Connect" as "Client type"

  5. Assign a client ID, e.g. bpc.
    This must later be linked to the Configuration <INLINE_CODE_2/> in the BPC.

  6. Activate "Client authentication". In older Keycloak versions, this corresponds to the access type "confidential".

  7. Enter the URL of your BPC under "Valid redirect URIs". E.g. "https://bpc.example.com/"

  8. Save the client

  9. You can view (and change) the client secret in the "Passwords" (or "Credentials") tab.
    This must be entered later with the Configuration <INLINE_CODE_3/> in the BPC.

Create BPC roles

To be able to appoint BPC administrators, you need the role bpcadmin.

  1. Select "Realm roles" on the left-hand side

  2. Create the role bpcadmin via "Create role".

Create or assign BPC administrator

For a user to be an administrator in the BPC, they need the role bpcadmin.

  1. Select "User" on the left-hand side

  2. Create a new user via "Add user" or select an existing user

  3. Assign the role bpcadmin to the user

Configure role mappings

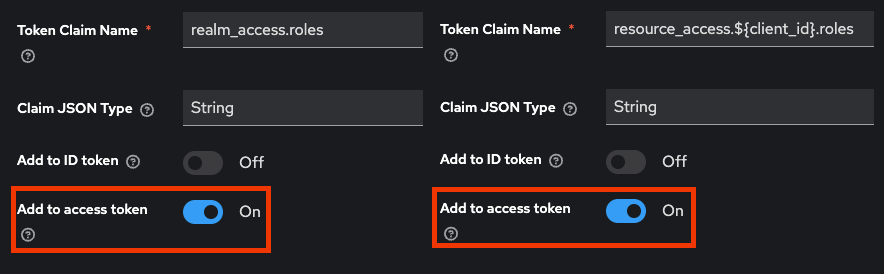

In order for the BPC to successfully recognize the roles and the Identity Management API can be used (necessary for user administration in the frontend), the option "Add to access token" must be activated for the role client scopes.

This should be set automatically when a new realm is created.

If it is not set, navigate in the Keycloak administration page in the BPC realm to Client-Scopes→roles→Mappers and activate the option for both mappers "realm roles" and "client roles".

role mapping

Configuration BPC

In the BPC, Keycloak must be created as an identity provider at Backend Connections and then defined as the identity provider to be used in the Core Services settings.

When the BPC is started, backend Connections are automatically created that can be used for the Keycloak. These contain a suitable placeholder configuration and have the names Keycloak and OIDC. See also Identity Provider Keycloak vs. OIDC

Identity Provider Keycloak vs. OIDC

You have the option of connecting Keycloak in two different variants (IdentityProvider OpenID Connect (OIDC) or Keycloak). In both variants, the actual authentication takes place via the OpenID Connect protocol. In the pure OpenID Connect (OIDC) variant, user administration takes place exclusively in Keycloak. If you select "Keycloak", the User administration / Identity Manager integrated in the BPC can be used.

Up to and including BPC 4.2.4, a Keycloak admin user must also be stored when using the Keycloak type. See the BPC 4.1 documentation for this. This also applies here up to version 4.2.4.

Specific configuration of the Backend Connection (BPC version < 4.2.13)

The following settings specific to this Identity Provider can be found at Backend Connections of type identity_provider. For the general configuration of Backend Connections of type identity_provider see General identity provider configuration.

Setting (Key) Group Example value Description

IdentityProvider
(identityProvider)

config

Keycloak or OpenID Connect (OIDC)

Set Keycloak or OIDC for the Backend Connection as IdP.
See also Identity Provider Keycloak vs. OIDC

IdentityProvider_URL
(identityProvider.url)

config

`https://localhost:8080/auth/realms/bpc/.well-known/openid-configuration`

OIDC Discovery Endpoint

IdentityProvider_Configuration
(identityProvider_configuration)

config

{
    "post_authentication_redirect_uri": "http://localhost:8181/",
    "claim_name_roles": "resource_access.bpc.roles,realm_access.roles",
    "scope": "openid profile email address phone roles",
    "client_secret": "bpc-test-only",
    "post_logout_redirect_uri": "http://localhost:8181",
    "client_id": "bpc"
}

Die Konfiguration für den Keycloak Zugriff. Die URLs müssen hier entsprechend dem BPC und dem Keycloak angepasst werden.
Siehe OIDC / Keycloak connection parameters

OIDC / Keycloak connection parameters

In the JSON Setting <INLINE_CODE_22/> the following Parameters can be configured:

Further configurations are required for BPC installations up to and including version 4.2.4. See the BPC 4.1 documentation. This also applies up to version 4.2.4.

Attribute Example value Description

post_authentication_redirect_uri

The user is redirected to this address after a login has been performed.
This URL must be allowed in the Keycloak Client and should point to the BPC.

claim_name_roles

realm_access.roles

Comma-separated list of all claim names from which the user’s roles are extracted.

claim_name_organisations

organisations

Comma-separated list of all claim names from which the user’s organizations are extracted.

claim_name_rights

rights

Comma-separated list of all claim names from which the user’s rights are extracted.

[scope]] scope

openid profile email address phone roles

OIDC scopes that are requested from the OIDC provider during authentication. If scopes are requested that do not exist or for which the client is not authorized, errors may occur during authentication.

client_id

bpc

ID of the client configured in the OIDC provider to be used for access.

[client_secret]] client_secret

bpc-test-only

Secret for authenticating client access.

Specific configuration of the Backend Connection (BPC version >= 4.2.13)

The following settings specific to this Identity Provider can be found at Backend Connections of type identity_provider. For the general configuration of Backend Connections of type identity_provider see General identity provider configuration.

Setting (Key) Group Example value Description

IdentityProvider
(identityProvider)

config

Keycloak or OpenID Connect (OIDC)

Set Keycloak or OIDC for the Backend Connection as IdP.
See also Identity Provider Keycloak vs. OIDC

IdentityProvider_OIDC_MetadataDiscoveryURI
(identityProvider_oidc_metadataDiscoveryUri)

oidc

[
    {
       "pattern": ".*",
       "uri": "https://localhost:8080/auth/realms/bpc/.well-known/openid-configuration"
    }
]

OIDC Discovery Endpoint.
Siehe auch Keycloak and dynamic redirect URIs.

IdentityProvider_OIDC_PostAuthenticationRedirectURI
(identityProvider_oidc_postAuthenticationRedirectUri)

oidc

[
    {
       "pattern": ".*",
       "uri": "http://localhost:8181/"
    }
]

An diese Adresse wird der Benutzer weitergeleitet, nachdem ein Login ausgeführt wurde.
Diese URL muss im Keycloak Client erlaubt sein und sollte auf das BPC zeigen.
Siehe auch Keycloak and dynamic redirect URIs.

IdentityProvider_OIDC_PostLogoutRedirectURI
(identityProvider_oidc_postLogoutRedirectUri)

oidc

[
    {
       "pattern": ".*",
       "uri": "http://localhost:8181"
    }
]

An diese Adresse wird der Benutzer weitergeleitet, nachdem ein Logout ausgeführt wurde.
Diese URL muss im Keycloak Client erlaubt sein.
Siehe auch Keycloak and dynamic redirect URIs.

IdentityProvider_OIDC_ClaimNameRoles
(identityProvider_oidc_claimNameRoles)

oidc

realm_access.roles

Comma-separated list of all claim names from which the user’s roles are extracted.

IdentityProvider_OIDC_ClaimNameOrganizations
(identityProvider_oidc_claimNameOrganisations)

oidc

organisations

Comma-separated list of all claim names from which the user’s organizations are extracted.

IdentityProvider_OIDC_ClaimNameRights
(identityProvider_oidc_claimNameRights)

oidc

rights

Comma-separated list of all claim names from which the user’s rights are extracted.

IdentityProvider_OIDC_Scope
(identityProvider_oidc_scope)

oidc

openid profile email address phone roles

OIDC scopes that are requested from the OIDC provider during authentication. If scopes are requested that do not exist or for which the client is not authorized, errors may occur during authentication.

IdentityProvider_OIDC_ClientId
(identityProvider_oidc_clientId)

oidc

bpc

ID of the client configured in the OIDC provider to be used for access.

IdentityProvider_OIDC_ClientSecret
(identityProvider_oidc_clientSecret)

oidc

bpc-test-only

Secret for the authentication of client access.

PKCE method
(identityProvider_oidc_pkceMethod)

oidc

S256

The PKCE method (Proof Key for Code Exchange) used for a hardened login flow. You can choose between S256 (recommended), plain or none (no PKCE). The selected PKCE method must be supported by Keycloak and, if necessary, configured in the corresponding client.

BPC integration

If you want to change the Setting <INLINE_CODE_62/`Keycloak` > setting, various integrations are available to you.

The BPC provides access to various user administration functions via the integrated user administration.

Via the User Account Menu Plugin various Actions can also be carried out by the user via the User Account Menu plugin.

Script for automatic setup

The following script can be used for development and test environments. This script goes against the Admin REST API of Keycloak and sets up a new realm bpc. This is then configured to work with the preconfigured identity provider Keycloak (ID: idp_keycloak).

The configuration of the backend Connection Keycloak (ID: idp_keycloak) initially provided by the BPC has been adapted in BPC 4.2.5 so that it fits this example. If your BPC was initially installed with a version < 4.2.5, you can select this identity provider from the Backend Connections After a restart, it will be restored with the new default settings. Alternatively, you can customize the script (e.g. the ID of the clients).

The script can be used, for example, if you temporarily start a keycloak via Docker for testing.

docker run --rm -p 8443:8443 -p 8080:8080 \
    -e KEYCLOAK_ADMIN=admin \
    -e KEYCLOAK_ADMIN_PASSWORD=admin \
    -e KC_FEATURES=token-exchange \
    quay.io/keycloak/keycloak start-dev --hostname=localhost

The script variables should be adjusted as required. However, it is not necessary to set ADMIN_USER and ADMIN_PASSWORD. These two variables are queried via the terminal at startup.

Configuration script createBpcRealm.sh
#!/bin/bash

# Keycloak Server URL und Admin Credentials
KEYCLOAK_URL="http://localhost:8080"
KEYCLOAK_REALM="master"
ADMIN_USER=""
ADMIN_PASSWORD=""

# Neue Realm-, Client- und Benutzer-Konfiguration
NEW_REALM="bpc"
NEW_CLIENT="bpc"
CLIENT_SECRET="bpc-test-only"
NEW_ROLE="bpcadmin"
BPC_USER="bpcuser"
BPC_ADMIN="bpcadmin"

# Benutzer-Daten
BPC_USER_FIRSTNAME="BPC"
BPC_USER_LASTNAME="User"
BPC_USER_EMAIL="bpcuser@example.com"

BPC_ADMIN_FIRSTNAME="BPC"
BPC_ADMIN_LASTNAME="Admin"
BPC_ADMIN_EMAIL="bpcadmin@example.com"

# Redirect-URL für den Client
REDIRECT_URL="http://localhost*"

# Funktion zur Eingabe von Benutzername und Passwort
read -p "Gib den Keycloak Admin Benutzernamen ein: " ADMIN_USER
read -s -p "Gib das Keycloak Admin Passwort ein: " ADMIN_PASSWORD
echo ""

# Abrufen eines Tokens vom Keycloak-Server
TOKEN=$(curl -s \
  -d "client_id=admin-cli" \
  -d "username=$ADMIN_USER" \
  -d "password=$ADMIN_PASSWORD" \
  -d "grant_type=password" \
  "${KEYCLOAK_URL}/realms/${KEYCLOAK_REALM}/protocol/openid-connect/token" | jq -r .access_token)

# Prüfen, ob das Token erfolgreich abgerufen wurde
if [ -z "$TOKEN" ]; then
  echo "Fehler beim Abrufen des Tokens. Überprüfe Benutzername/Passwort und Keycloak-URL."
  exit 1
fi

# Realm "bpc" erstellen mit Internationalisierung
# Für Login Theme die folgende Zeile mit aufnehmen
# "loginTheme": "theme-id",
echo "Erstelle den Realm '${NEW_REALM}' mit Login-Theme 'foo-theme' und Internationalisierung..."
curl -s -X POST "${KEYCLOAK_URL}/admin/realms" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "realm": "'"${NEW_REALM}"'",
    "enabled": true,
    "internationalizationEnabled": true,
    "supportedLocales": ["en", "de"],
    "defaultLocale": "en"
  }'

# Client "bpc" erstellen
echo "Erstelle den Client '${NEW_CLIENT}' im Realm '${NEW_REALM}' mit Redirect-URL '${REDIRECT_URL}'..."
curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/clients" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "clientId": "'"${NEW_CLIENT}"'",
    "secret": "'"${CLIENT_SECRET}"'",
    "enabled": true,
    "redirectUris": ["'"${REDIRECT_URL}"'"],
    "directAccessGrantsEnabled": true
  }'

# Realm-Rolle "bpcadmin" erstellen
echo "Erstelle die Realm-Rolle '${NEW_ROLE}'..."
curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/roles" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "'"${NEW_ROLE}"'"
  }'

# Benutzer "bpcuser" erstellen
echo "Erstelle den Benutzer '${BPC_USER}'..."
curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/users" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "username": "'"${BPC_USER}"'",
    "firstName": "'"${BPC_USER_FIRSTNAME}"'",
    "lastName": "'"${BPC_USER_LASTNAME}"'",
    "email": "'"${BPC_USER_EMAIL}"'",
    "enabled": true,
    "credentials": [{
      "type": "password",
      "value": "'"${BPC_USER}"'",
      "temporary": false
    }]
  }'

# Benutzer "bpcadmin" erstellen
echo "Erstelle den Benutzer '${BPC_ADMIN}'..."
curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/users" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "username": "'"${BPC_ADMIN}"'",
    "firstName": "'"${BPC_ADMIN_FIRSTNAME}"'",
    "lastName": "'"${BPC_ADMIN_LASTNAME}"'",
    "email": "'"${BPC_ADMIN_EMAIL}"'",
    "enabled": true,
    "credentials": [{
      "type": "password",
      "value": "'"${BPC_ADMIN}"'",
      "temporary": false
    }]
  }'

# Benutzer-ID des Benutzers "bpcadmin" abrufen
BPC_ADMIN_ID=$(curl -s -X GET "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/users?username=${BPC_ADMIN}" \
  -H "Authorization: Bearer $TOKEN" | jq -r '.[0].id')

# Rollen-ID der Rolle "bpcadmin" abrufen
ROLE_ID=$(curl -s -X GET "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/roles/${NEW_ROLE}" \
  -H "Authorization: Bearer $TOKEN" | jq -r '.id')

# Rolle "bpcadmin" dem Benutzer "bpcadmin" zuweisen
echo "Weise die Rolle '${NEW_ROLE}' dem Benutzer '${BPC_ADMIN}' zu..."
curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/users/${BPC_ADMIN_ID}/role-mappings/realm" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '[
    {
      "id": "'"${ROLE_ID}"'",
      "name": "'"${NEW_ROLE}"'"
    }
  ]'

# Abrufen der Scope-ID für "profile" im Realm "bpc"
echo "Rufe die Scope-ID für 'profile' im Realm '${NEW_REALM}' ab..."
PROFILE_SCOPE_ID=$(curl -s -X GET "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/client-scopes" \
  -H "Authorization: Bearer $TOKEN" | jq -r '.[] | select(.name == "profile") | .id')

# Prüfen, ob die Scope-ID für "profile" gefunden wurde
if [ -z "$PROFILE_SCOPE_ID" ]; then
  echo "Fehler: Der Scope 'profile' wurde im Realm '${NEW_REALM}' nicht gefunden."
  exit 1
fi

# Mapper "Impersonator User ID" zum "profile" Scope hinzufügen
echo "Füge dem Scope 'profile' den Mapper 'Impersonator User ID' hinzu..."
curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/client-scopes/${PROFILE_SCOPE_ID}/protocol-mappers/models" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Impersonator User ID",
    "protocol": "openid-connect",
    "protocolMapper": "oidc-usersessionmodel-note-mapper",
    "config": {
      "user.session.note": "IMPERSONATOR_ID",
      "id.token.claim": "true",
      "introspection.token.claim": "true",
      "access.token.claim": "true",
      "claim.name": "impersonator.id",
      "jsonType.label": "String"
    }
  }'

# Mapper "Impersonator Username" zum "profile" Scope hinzufügen
echo "Füge dem Scope 'profile' den Mapper 'Impersonator Username' hinzu..."
curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${NEW_REALM}/client-scopes/${PROFILE_SCOPE_ID}/protocol-mappers/models" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Impersonator Username",
    "protocol": "openid-connect",
    "protocolMapper": "oidc-usersessionmodel-note-mapper",
    "config": {
        "user.session.note": "IMPERSONATOR_USERNAME",
        "id.token.claim": "true",
        "introspection.token.claim": "true",
        "access.token.claim": "true",
        "claim.name": "impersonator.username",
        "jsonType.label": "String"
    }
  }'

echo "Fertig!"

Execution of the script is at your own risk. No guarantee is given for the function.

An insecure secret is set for the client in the script. This should never be used in productive environments.

Provide Keycloak health checks

Keycloak offers a management interface with health checks. The health check endpoints are available if the environment variable KC_HEALTH_ENABLED is set to the value true. The management interface is typically provided on the Port 9000; the health endpoints are /health/live, /health/ready, /health/started and /health.

If you want to set up the Docker container with the health check endpoints as described in section Script for automatic setup, you must provide the arguments -p 9000:9000 and -e KC_HEALTH_ENABLED=true.

After setting up, you can configure the health check endpoints as described under Configure Identity Provider you can set the health check URL (e.g. http://localhost:9000/health/ready) and use the Status API query.


Keywords:
